Product Details
Place of Origin: Chengdu, Sichuan
Brand Name: BONENS
Model Number: RXLG
Payment & Shipping Terms
PRODUCT NAME

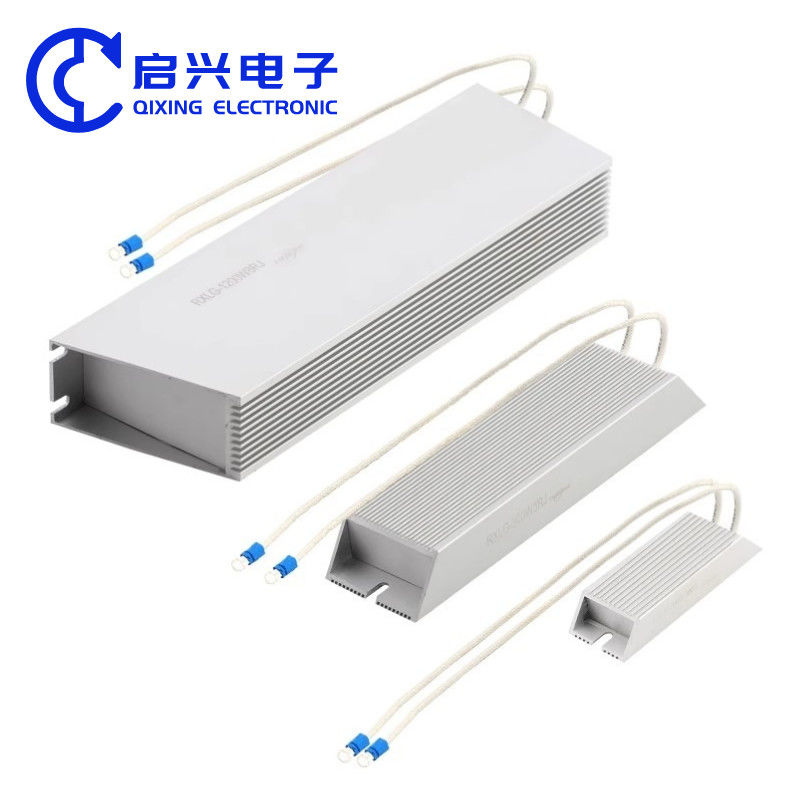

RXLG trapezoidal aluminum case brake inverter resistor
PRODUCT INTRODUCTION
PRODUCT MATERIAL DESCRIPTION

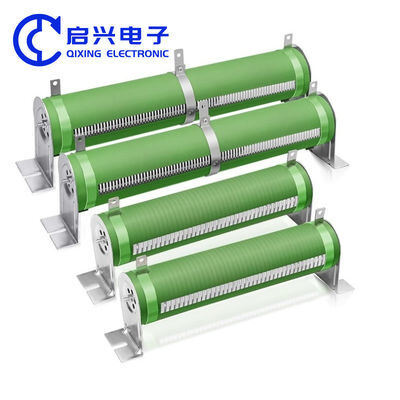

RX20 porcelain tube high power load aging discharge brake adjustable sliding resistor
| Outer shell | Good heat dissipation, suitable for heat sink installation, high insulation, complete fusion welding structure, installed on the substrate should have heat absorption effect, with environmental protection molding structure, no inductive winding of low reactive components |
| Conducting wire | Constantan wire or nichrome alloy wire, depending on the resistance value |
| Core materials | Ceramic or talc porcelain depends on the physical size |
| Heat sinks | The workmanship is fine, the winding is uniform, the use of inorganic coatings, and the insulation is durable. Overcome the biography |
PRODUCT FEATURES
RXLG Aluminum Case Brake Resistor Features
ELECTRICAL CHARACTERISTICS
Servo inverter aluminum shell brake resistor, aluminum shell has good heat dissipation performance, good weather resistance, good vibration resistance, tight and convenient installation, easy installation of radiator, suitable for use in high requirements and harsh environments.
PRODUCT MODEL PARAMETERS
PRODUCT SIZE
| Power | Dimension(mm) | |||||||||
| A ±2 |
B±2 | C±1 | D±1 | E±1 | F±1 | Wiring 2 (mm) |
Terminals | Resistance | Picture | |
| 60W | 115 | 96 | 40 | 20 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
| 80W | 140 | 121 | 40 | 20 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
| 100W | 165 | 146 | 40 | 20 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
| 120W | 190 | 171 | 40 | 20 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
| 150W | 215 | 196 | 40 | 20 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
| 200W | 165 | 135 | 60 | 30 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
| 300W | 215 | 185 | 60 | 30 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
| 400W | 265 | 235 | 60 | 30 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
| 500W | 335 | 305 | 60 | 30 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
| 800W | 400 | 381 | 61 | 59 | 5.5 | 40 | 2.5 | 3.5-6S | 0.1Ω-10KΩ | PictureB |
| 1KW | 400 | 382 | 50 | 108 | 5.5 | 30 | 2.5 | 3.5-7S | 0.1Ω-10KΩ | PictureB |
| 1.2KW | 450 | 432 | 50 | 108 | 5.5 | 30 | 2.5 | 3.5-8S | 0.1Ω-10KΩ | PictureB |
| 1.5KW | 485 | 467 | 50 | 108 | 5.5 | 30 | 2.5 | 3.5-9S | 0.1Ω-10KΩ | PictureB |
| 2KW | 650 | 632 | 50 | 108 | 5.5 | 30 | 2.5 | 3.5-10S | 0.1Ω-100KΩ | PictureB |
APPLICATION AREA
PRODUCTION PACKAGING
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
COMPANY PROFILE
Sichuan Qixing Elctronics Co., Ltd is a specialized enterprise engaging in trimming potentiometers, wire-wound potentiometer series, wire-wound resistor series, and RIG High power resistors. It is a high-tech enterprise appraised by state.
Our products under the "BONENS" brand that have been widely applied in the fields of instruments, meters and apparatuses, post and telecommunications, electricity power, railway signals, aviation and aerospace.
We have attained ISO9001 certificate, and passed the TUV and RoHS, which adheres to the environmental standards of the EU. With excellent product quality, advanced facility, abundant technology, strict management and good service, win customers’ high praise
FAQ:
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
