RXLG Aluminum shell braking resistor 300W Power Resistor

Product Details

Place of Origin: Chengdu, Sichuan

Brand Name: BONENS

Model Number: RXLG

Payment & Shipping Terms

Get Best Price
Highlight:
RXLG Aluminum shell braking resistor 300W Power Resistor

PRODUCT NAME

RXLG Aluminum shell braking resistor 300W Power Resistor

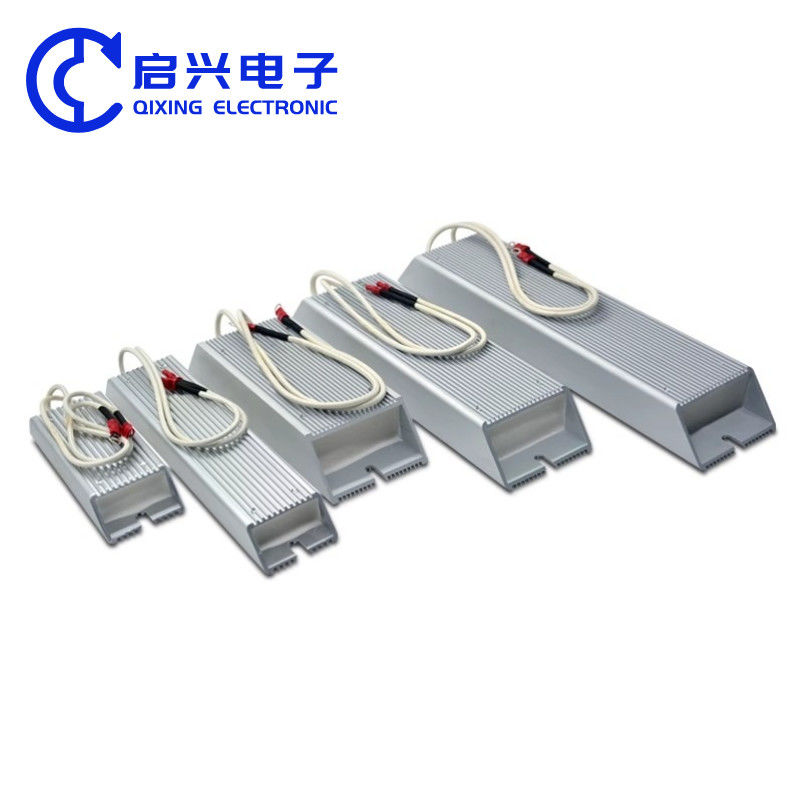

RXLG Aluminum shell braking resistor 300W Power Resistor 0

product description

RXLG trapezoidal aluminum shell resistor integrates multiple functions such as braking resistor, regeneration resistor, load resistor, etc., providing a powerful and flexible resistor solution for modern industrial control systems.



High heat dissipation aluminum alloy housing: ensures that the resistor can still maintain a low temperature when working under high loads, and prolong the service life.
High-temperature resistant material matrix: Special high-temperature resistant materials are used to ensure that the resistor can maintain stable performance in extreme working environments.
High insulating and non-combustible filling: Advanced potting technology ensures the safety and reliability of the resistor.

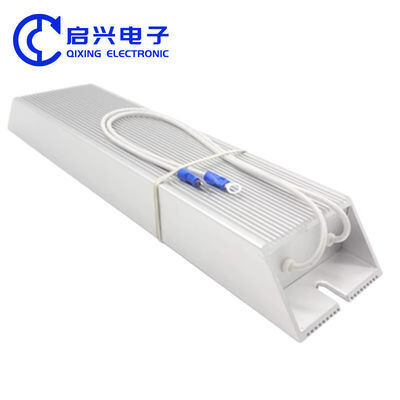

RXLG Aluminum shell braking resistor 300W Power Resistor 1
PRODUCT MATERIAL DESCRIPTION

RX20 porcelain tube high power load aging discharge brake adjustable sliding resistor

Outer shell Good heat dissipation, suitable for heat sink installation, high insulation, complete fusion welding structure, installed on the substrate should have heat absorption effect, with environmental protection molding structure, no inductive winding of low reactive components
Conducting wire Constantan wire or nichrome alloy wire, depending on the resistance value
Core materials Ceramic or talc porcelain depends on the physical size
Heat sinks The workmanship is fine, the winding is uniform, the use of inorganic coatings, and the insulation is durable. Overcome the biography

RXLG Aluminum shell braking resistor 300W Power Resistor 2

PRODUCT FEATURES

Fast heat dissipation: Efficient heat dissipation design ensures long-term stable operation of the resistor.

Anti-vibration: The sturdy structure can cope with various vibration challenges in industrial environments.

High power: Meet the needs of high-power equipment and provide stable resistance support.

Strong overload capacity: Excellent overload performance to ensure system safety.

Small size and easy installation: Compact design for easy installation and integration.

Beautiful appearance: Industrial style appearance design, both practical and beautiful

RXLG Aluminum shell braking resistor 300W Power Resistor 3

ELECTRICAL CHARACTERISTICS

The aluminum shell has good heat dissipation performance, weather resistance, vibration resistance, easy to install tightly, easy to attach radiators, and is suitable for use in high-demand and harsh environments.

RXLG Aluminum shell braking resistor 300W Power Resistor 4

PRODUCT SIZE

功率
Power
尺寸/Dimension(mm)
A
±2
B±2 C±1 D±1 E±1 F±1 配线2
(mm)
端子 阻值范围
Resistance
图面
60W 115 96 40 20 5.5   1.5 2.5-5S 0.1Ω-10KΩ PictureA
80W 140 121 40 20 5.5   1.5 2.5-5S 0.1Ω-10KΩ PictureA
100W 165 146 40 20 5.5   1.5 2.5-5S 0.1Ω-10KΩ PictureA
120W 190 171 40 20 5.5   1.5 2.5-5S 0.1Ω-10KΩ PictureA
150W 215 196 40 20 5.5   1.5 2.5-5S 0.1Ω-10KΩ PictureA
200W 165 135 60 30 5.5   1.5 2.5-5S 0.1Ω-10KΩ PictureA
300W 215 185 60 30 5.5   1.5 2.5-5S 0.1Ω-10KΩ PictureA
400W 265 235 60 30 5.5   1.5 2.5-5S 0.1Ω-10KΩ PictureA
500W 335 305 60 30 5.5   1.5 2.5-5S 0.1Ω-10KΩ PictureA
800W 400 381 61 59 5.5 40 2.5 3.5-6S 0.1Ω-10KΩ PictureB
1KW 400 382 50 108 5.5 30 2.5 3.5-7S 0.1Ω-10KΩ PictureB
1.2KW 450 432 50 108 5.5 30 2.5 3.5-8S 0.1Ω-10KΩ PictureB
1.5KW 485 467 50 108 5.5 30 2.5 3.5-9S 0.1Ω-10KΩ PictureB
2KW 650 632 50 108 5.5 30 2.5 3.5-10S 0.1Ω-100KΩ PictureB

RXLG Aluminum shell braking resistor 300W Power Resistor 5

SURFACE TEMPERATURE RISE CURVE

RXLG Aluminum shell braking resistor 300W Power Resistor 6

DERATING CURVE

RXLG Aluminum shell braking resistor 300W Power Resistor 7

LICATION AREA

XLG trapezoidal aluminum case resistors are widely used in the following scenarios:
Inverter braking: In the process of inverter braking, it effectively absorbs and dissipates electrical energy to protect the equipment.
Elevators, rolling mills, cranes: Stable resistance support for these large machines to ensure safe and efficient operation.
Equipment such as wire drawing machines: provide reliable solutions where precise control of resistance is required.
Load aging test: In the load aging test, various load conditions are simulated to ensure the stability and reliability of the equipment in long-term use.

RXLG Aluminum shell braking resistor 300W Power Resistor 8

PRODUCTION PACKAGING

RXLG aluminium brake resistors are individually packaged in cartons

RXLG Aluminum shell braking resistor 300W Power Resistor 9
