Product Details
Place of Origin: Chengdu, Sichuan
Brand Name: BONENS
Model Number: RXLG
Payment & Shipping Terms
Rated Power Range: |
60w~2000w |
Operating Voltage Range: |
<1.5kV |
Rated Resistance Range: |
0.1Ω~100kΩ |
Highest Withstand Pressure: |
3000V |
Highest Precision: |
1% |
IP Rating: |
IP00/IP33 |
Vibration: |
1.5g |
Temperature Drift Range: |
≤400ppm/℃ |
Working Temperature Range: |
-55℃~+275℃ |
Wiring: |
Thread / Lead / Insert |
Rated Power Range: |
60w~2000w |
Operating Voltage Range: |
<1.5kV |
Rated Resistance Range: |
0.1Ω~100kΩ |
Highest Withstand Pressure: |
3000V |
Highest Precision: |
1% |
IP Rating: |
IP00/IP33 |
Vibration: |
1.5g |
Temperature Drift Range: |
≤400ppm/℃ |
Working Temperature Range: |
-55℃~+275℃ |
Wiring: |
Thread / Lead / Insert |

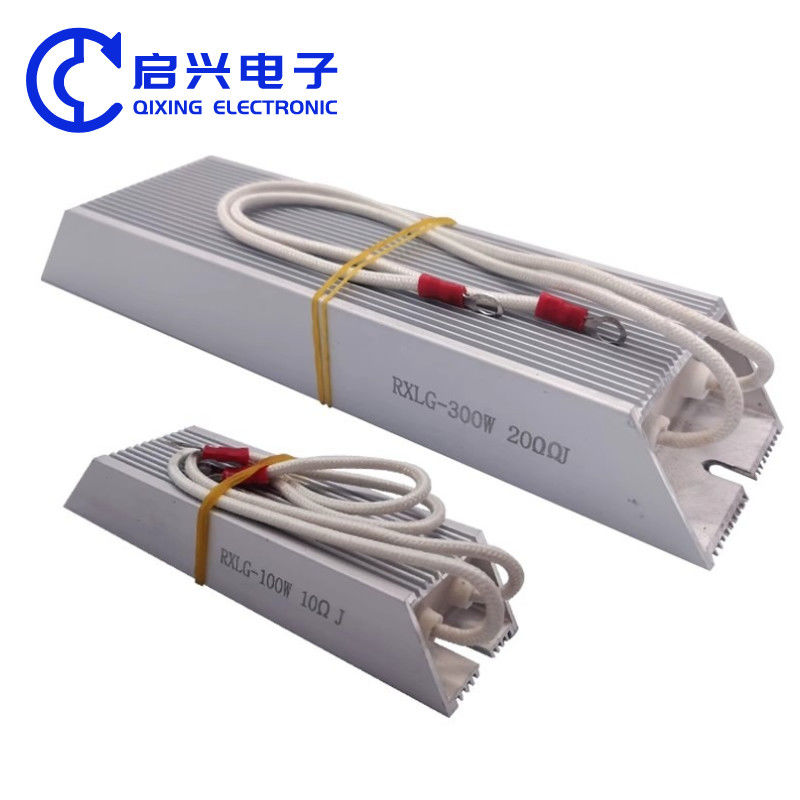

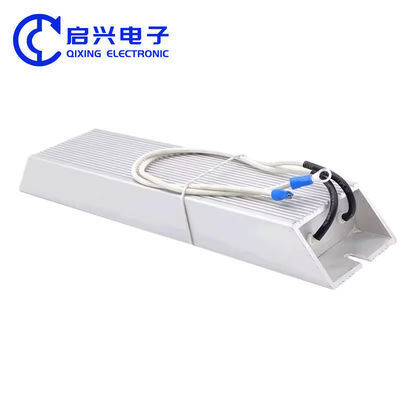

RXLG Resistor Manufacturer VFD Aluminum Braking Resistor 3000W 2000W 1000W 500W
PRODUCT NAME
Braking resistor 150W aluminum case resistor frequency converter resistor
PRODUCT INTRODUCTION 产品介绍
RXLG trapezoidal aluminum shell resistor, also known as braking resistor, regeneration resistor, load resistor, discharge resistor, brake resistor, high-power resistor, discharge resistor, etc.
RXLG aluminum shell brake resistor adopts high heat dissipation aluminum alloy shell and high temperature resistant material as the resistance matrix, high insulation and non-combustible filler potting, and the resistance substrate is tightly combined with the resistance wire and metal shell, which has high stability and thermal conductivity. It has fast heat dissipation, vibration resistance, large power and strong overload resistance, small size, easy installation, beautiful appearance, suitable for harsh industrial control environment, and is an ideal supporting product for electronic power. It is widely used in inverter brakes, elevators, rolling mills, cranes, wire drawing machines, and load aging tests
PRODUCT MATERIAL DESCRIPTION 产品材质说明
RX20 porcelain tube high power load aging discharge brake adjustable sliding resistor
Outer shell | Good heat dissipation, suitable for heat sink installation, high insulation, complete fusion welding structure, installed on the substrate should have heat absorption effect, with environmental protection molding structure, no inductive winding of low reactive components |
Conducting wire | Constantan wire or nichrome alloy wire, depending on the resistance value |
Core materials | Ceramic or talc porcelain depends on the physical size |
Heat sinks | The workmanship is fine, the winding is uniform, the use of inorganic coatings, and the insulation is durable. Overcome the biography |
PRODUCT FEATURES 产品特点
RXLG trapezoidal aluminum case resistor features:
1. Small size, high power, strong overload capacity, good heat dissipation, weather resistance, vibration resistance·
2. Easy to install tightly, easy to attach radiator. It is suitable for use in demanding and harsh environments
3. RXLG series trapezoidal aluminum shell resistor is made of high heat dissipation aluminum alloy shell
4. High temperature resistant silicone resin and silica fume fully sealed filling material, non-toxic and odorless. Environmental protection, green and safe
5. The skeleton of the winding resistance wire is ceramic. The electrolytic wire is made of constantan and nickel-chromium. Ensure heat resistance, high temperature resistance, stable performance and long service life
ELECTRICAL CHARACTERISTICS 电器特征
The aluminum shell has good heat dissipation performance, weather resistance, vibration resistance, easy to install tightly, easy to attach radiators, and is suitable for use in high-demand and harsh environments.
PRODUCT SIZE 尺寸
功率 Power |
尺寸/Dimension(mm) | |||||||||
A ±2 |
B±2 | C±1 | D±1 | E±1 | F±1 | 配线2 (mm) |
端子 | 阻值范围 Resistance |
图面 Picture |
|
60W | 115 | 96 | 40 | 20 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
80W | 140 | 121 | 40 | 20 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
100W | 165 | 146 | 40 | 20 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
120W | 190 | 171 | 40 | 20 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
150W | 215 | 196 | 40 | 20 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
200W | 165 | 135 | 60 | 30 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
300W | 215 | 185 | 60 | 30 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
400W | 265 | 235 | 60 | 30 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
500W | 335 | 305 | 60 | 30 | 5.5 | 1.5 | 2.5-5S | 0.1Ω-10KΩ | PictureA | |
800W | 400 | 381 | 61 | 59 | 5.5 | 40 | 2.5 | 3.5-6S | 0.1Ω-10KΩ | PictureB |
1KW | 400 | 382 | 50 | 108 | 5.5 | 30 | 2.5 | 3.5-7S | 0.1Ω-10KΩ | PictureB |
1.2KW | 450 | 432 | 50 | 108 | 5.5 | 30 | 2.5 | 3.5-8S | 0.1Ω-10KΩ | PictureB |
1.5KW | 485 | 467 | 50 | 108 | 5.5 | 30 | 2.5 | 3.5-9S | 0.1Ω-10KΩ | PictureB |
2KW | 650 | 632 | 50 | 108 | 5.5 | 30 | 2.5 | 3.5-10S | 0.1Ω-100KΩ | PictureB |
SURFACE TEMPERATURE RISE CURVE
DERATING CURVE
APP
LICATION AREA 应用领域
1. RXLG trapezoidal aluminum shell resistor is used as a braking resistor to protect the inverter and servo from the harm of motor regenerative power
2. RXLG trapezoidal aluminum shell resistor is used as a false load in power electronic equipment such as generators and inverter systems to test the performance indicators of the equipment
3. RXLG trapezoidal aluminum shell resistors are used as sampling resistors, current limiting resistors, starting resistors, discharge resistors, charging resistors, regeneration resistors, and respawning resistors in power electronic equipment
4. RXLG trapezoidal aluminum shell resistor is used as a current limiting element or voltage divider element in the circuit of inverter, servo, power supply and other equipment to regulate and stabilize current and voltage
PRODUCTION PACKAGING 生产包装
RXLG aluminium brake resistors are individually packaged in cartons
Finished product identification code
RXLG | 200 | 50R | J | L |
Product Category | rated power | resistance | Accuracy | Wiring |
RXLG series (trapezoidal aluminum shell) | 50=50W 100=100W |
R1=0.1Ω 100R=100Ω |
F=±1% G=±2% H=±3% J=±5% K=±10% |
T = thread L = lead P = insert |
*Remarks: RXLG 200W 50Ω ±5%, model: RXLG-200-50RJ-L; low inductance, add the letter N in the model, for example: N RXLG-200-50RJ
Resistors are recommended for use
Resistance in the use of the circuit is recommended to leave 1.5 times the power margin, such as the circuit voltage 100V, current 0.01A, calculated power: P = 100 * 0.01 = 1W, at this time the resistance can not use 1W, calculate 1 * 1.5 = 1.5W, there is no 1.5W resistance, so 2W resistance is needed
