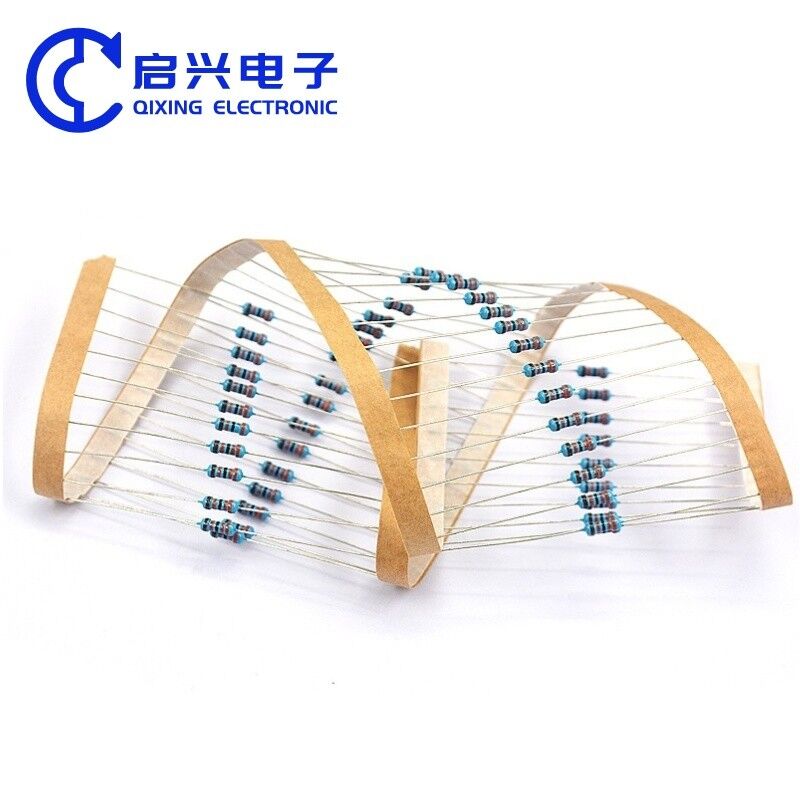

1/4w 0.25w 1% 500 ohm Resistor Metal Film Assorted Pack Resistor Kit
1/4w 0.25w 1% 500 ohm Resistor Metal Film Assorted Pack Resistor Kit
Key Attributes
Model Number:Metal Film Resistor
Place of Origin:Sichuan, China
Standard Packaging:Carton packaging
Product Summary
Factory Price 1/4W Carbon Film Power Resistor, 1000MΩ Insulation, 300V Max Working, 600V Max Overload Factory price Color Code Resistor1/4w Carbon Film Power Resistors Product Details 1)Insulation resistance: 1000M ohm or more 2)Voltage endurance: The resistance variation shall be within±(2% + 0...
Product Details
Highlight:
25W 500 Ohm
,Factory Direct Price
,Customized Specifications
Model Number:
Metal Film Resistor
Brand Name:
Bonens
Rated Power:
1/4w
Package Type:
Throught Hole
Resistance Tolerance:
1% Or 5%
Temperature Coefficient:
15ppm,25ppm,50ppm,100ppm,250ppm
Package Type::
5000PCS/resistance Value /box
Type:
Metal Film Resistor
Application:
Precision Electronic Circuits
Product Description
Detailed Specifications & Features
Factory Price 1/4W Carbon Film Power Resistor, 1000MΩ Insulation, 300V Max Working, 600V Max Overload
Factory price Color Code Resistor1/4w Carbon Film Power Resistors
Product Details
1)Insulation resistance: 1000M ohm or more
2)Voltage endurance: The resistance variation shall be within±(2% + 0.05ohm) and there shall be no mechanical breakage
3) Intermittent overload:Resistance variation shall be Within ±(2.00% + 0.05ohm
4)Terminal strength:Resistance variation shall be within±(0.5% + 0.05ohm) also there Shall be on mechanical breakage
5)Heat resistively Against soldering:Resistance variation shall be within ± (1.0%+0.05ohm) also there Shall be on mechanical breakage
6) Solder ability:More than 95% of the surface of the lead shall be covered by new solder after the leads are dipped in the
Solder
7) Humidity load test:Resistance variation be Within ± (3.0% + 0.05ohm) Also there shall be mo mechanical breakage
8) Load life test :The variation of the resistance Shall be within ± (3%+0.05ohm) Also there shall be no mechanical Breakage
Rating:
CF(CARBON FILM FIXED RESISTORS)
|
STYLE
|
MAX WORKING |
MAX OVERLOAD |
RESISTANCE VALUE RANGE |
|
CF1/6W / CF1/8W |
200V |
400V |
0.1Ω~22MΩ |
|
CF1/4W / CF1/4WS |
300V |
600V |
0.1Ω~22MΩ |
|
CF1/2W / CF1/2WS |
350V |
700V |
0.1Ω~22MΩ |
|
CF1W / CF1WS |
500V |
1000V |
0.1Ω~22MΩ |
|
CF2W / CF2WS |
500V |
1000V |
0.1Ω~22MΩ |
|
CF3W / CF3WS |
600V |
1000V |
0.1Ω~22MΩ |
|
CF5W / CF5WS |
600V |
1000V |
0.1Ω~22MΩ |
Power rating:
Marking:
Color refer
|
Color |
1 st Band |
2 ndBand |
3 rd Band |
4 th Band |
|
Black |
0 |
0 |
100 |
|
|
Brown |
1 |
1 |
101 |
|
|
Red |
2 |
2 |
102 |
±2.0% |
|
Orange |
3 |
3 |
103 |
|
|
Yellow |
4 |
4 |
104 |
|
|
Green |
5 |
5 |
105 |
|
|
Blue |
6 |
6 |
106 |
|
|
Violet |
7 |
7 |
107 |
|
|
Grey |
8 |
8 |
108 |
|
|
White |
9 |
9 |
109 |
|
|
Gold |
|
|
10-1 |
±5.0% |
|
Silver |
|
|
10-2 |
±10.0% |
Construction And Dimession:
Construction:
Dimession:
TABLE:
|
WATTS |
L |
D |
H |
d ± 0.02mm |
PULLING (Kg) |
|
1/6W 1/8W 1/16W |
3.3±0.3 |
1.8±0.3 |
28±2.0 |
0.45 |
2.5Kg - 30S |
|
1/4WS |
|||||
|
1/4W |
6.0±0.5 |
2.3±0.3 |
27.0±2.0 |
0.48 |
2.5Kg - 30S |
|
1/2WS |
|||||
|
1/2W |
9.0±0.5 |
3.2±0.3 |
26.0±2.0 |
0.58 |
2.5Kg - 30S |
|
1WS |
|||||
|
1W |
11.0±1.0 |
4.5±0.5 |
35.0±2.0 |
0.68 |
3Kg - 30S |
|
2WS |
|||||
|
2W |
15.0±1.0 |
5.0±0.5 |
33.0±2.0 |
0.78 |
5Kg - 30S |
|
3WS |
|||||
|
3W |
17.0±1.0 |
6.0±0.5 |
32.0±2.0 |
0.78 |
5Kg - 30S |
|
5WS |
|||||
|
5W |
24.0±1.0 |
8.0±1.0 |
28.0±2.0 |
0.78 |
5Kg - 30S |
FAQ:
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,,Western Union,Cash;
Language Spoken:English,Chinese
