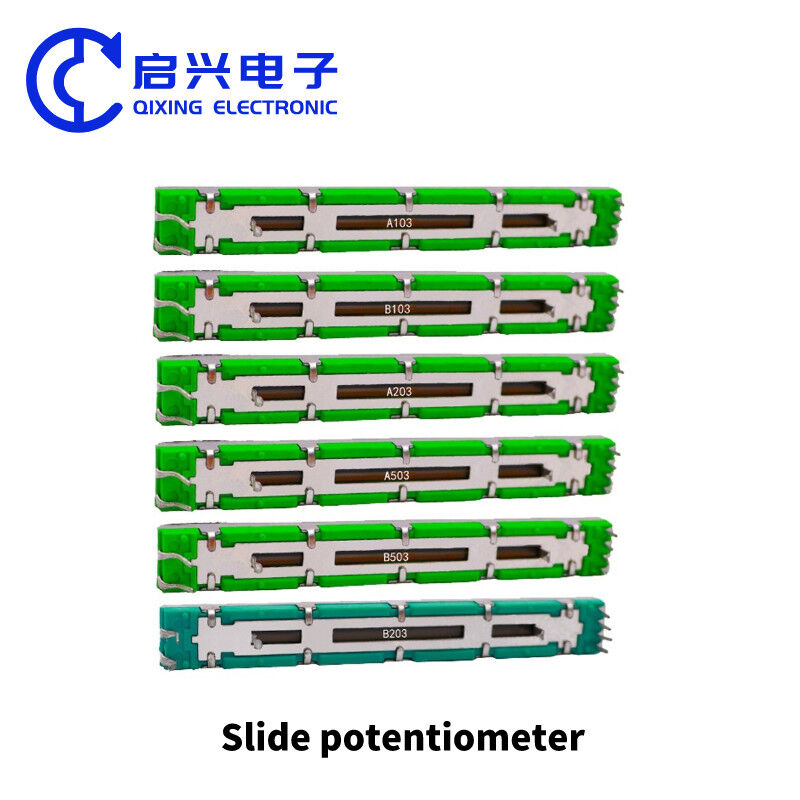

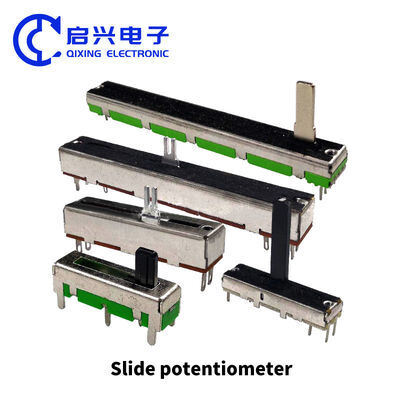

B303 Microphone dedicated single link 05 sliding potentiometer 5MM direct sliding potentiometer
product name:
Description:
Slide Potentiometer is a sliding resistor that is formed by a resistance wire around the insulation material. It consists of a sliding film and a contact point that can be used to regulate the resistance of the circuit. The sliding tablet is located on the resistance wire, which can slide along the resistance wire to change the resistance value. Sliding resistors are usually used to regulate the resistance value of amplifier, filter and other electronic devices.
The advantages of Slide Potentiometer include:
Easy to adjust: The sliding resistor can adjust the resistance value of the circuit by moving the slide tablet, so it is very convenient to use.
High accuracy: The resistance value of the sliding resistor is very accurate, so it can be used in a high -precision circuit.
Wide application range: sliding resistors can be used in various electronic devices and circuits, including amplifiers, filters, oscillators, etc.
Simple structure: The sliding resistor consists of a resistor wire and a sliding tablet. The structure is very simple and easy to make and maintain.
The range of adjustment is wide: the range of the resistance of the sliding resistor is very wide, and it can range from several ohms to thousands of ohms, so it can meet different needs.
Specification:
|
item
|
value
|
|
Model Number
|
SC10005G
|
|
Type
|
Precision Potentiometer
|
|
Place of Origin
|
China
|
|
Sichuan
|
|
Brand Name
|
BONENS
|
|
Technology
|
Carbon Film
|
|
Resistance
|
b10k ohm
|
|
Resistance Tolerance
|
±20%
|
|
Rated Power
|
0.2W
|
|
Max. Operating Voltage
|
200V
|
|
Operating Temperature
|
-10 ~70℃
|
|
Brand
|
mixer fader
|
|
Power (Watts)
|
|
|
Adjustment Type
|
Slide
|
