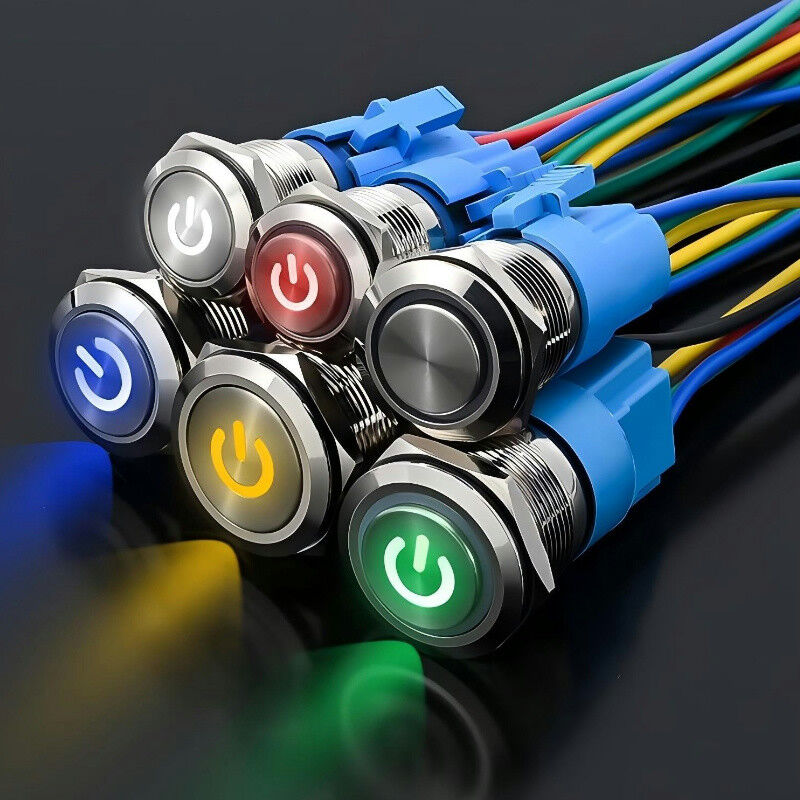

19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
  • 19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
  • 19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
  • 19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
  • 19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
  • 19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
  • 19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
  • 19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri

19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri

Place of Origin Sichuan, China
Brand Name BONENS
Model Number Metal pushbutton switches
Product Details
Highlight:

12V Metal Push Button Switch

,

19mm Metal Push Button Switch

,

24V Metal Push Button Switch

Payment & Shipping Terms
Packaging Details
Carton packaging
Product Description
Product Description
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri

Self-locking button

Press the button to power on, and press the button again to power off
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri

Self-reset button

Press the button to power on, release the button to power off
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri

Ring light button switch

Button: Flat button Lights: Ring lights Button Material: Stainless Steel
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri

Power light button switch

Button: Flat button Lights: Power icon lights Button Material: Stainless Steel
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri

Lightless pushbutton switch

Buttons: Flat buttons Lighting: No light Button Material: Stainless Steel

19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri

Convex pushbutton switch

Button: Convex button Button light: Power icon light Button Material: Stainless Steel
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri

Pushbutton switch with wire

Button: Flat button Button light: with light/without light Button Material: Stainless Steel Cable: With plug and play cable
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri

Button socket connector

Copper core PVC monobloc outer skin Solder-free, plug and play The default line length is 15cm

19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri



Red LED light power icon button switch

19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri



Yellow LED light power icon button switch

19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri



Blue LED light power icon button switch

19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri



Green LED light power icon button switch

19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri



White LED light power icon button switch

19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri




Ring red LED light pushbutton switch
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri



Ring Yellow LED light pushbutton switch

19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri



Ring Blue LED light pushbutton switch

19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri



Ring White LED light pushbutton switch

19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri



Ring Green LED light pushbutton switch

19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri



Flat button switch without light

19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri



Metal pushbutton switch with conductive electricity

19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
Specification
Product Name:
Metal pushbutton switches
Type of operation:
Self-reset/self-locking switch
Rated current:
3A 5A
Wiring:
Welding feet
Contact Form:
12mm:1NC 16mm/19mm/22mm:1NO1NC
Cut-out size:
12mm,16mm,19mm,22mm,25mm,30mm
Housing Material:
Made of metal
Operating Voltage:
3V-220V
Ingress Protection:
12mm/16mm/19mm:IP66 22mm:IP67
Light Color:
Red/Yellow/Blue/Green/White
Mechanical life
Self-resetting: 1,000,000 times Self-locking: 500,000 times
Product Specifications
AC 220V
AC 110V
DC 24V
DC 12V
DC 6V
12mm

Current rating
0.5A
1A
1A
2A
2A
16~30mm
4A
5A
2A
4A
4A
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
Packing & Delivery
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
19mm Metal annular Push Button Switch 3v 12V 24V 110V 220V LED Lamp Illumination Waterproof Momentary Latching Switch Ri
