Power Rheostat 500 Watt Slide Wire Bound Rheostat Resistor 25W to 500W
Power Rheostat 500 Watt Slide Wire Bound Rheostat Resistor 25W to 500W
Key Attributes
Brand Name:BONENS
Model Number:BC1
Place of Origin:Sichuan, China
Standard Packaging:Carton packaging
Product Summary
Wirewound adjustable resistor rheostat 25W 500W 100W 1.BC1 High power wirewound sliding rheostat are wound with chromium-alloy wire as a resistor element. 2.The entire component is coated non-flammable and high-temperature resin exception for the slide contact surface. 3.After cooling and drying, ...
Product Details
Highlight:
500 Watt Rating
,Chromium Alloy Wire
,Non Flammable Coating
Terminal Resistance:
≤0.2%or1Ω
Insulation Resistance:
≥100mΩ（500Vdc）
Dimensions:
6mm X 9mm
Temperature Range:
-55℃~350℃
Rated Power:
25W~500W
Resistance Error Error:
±10%
Packaging Type:
Paper Package
Operating Temperature:
-55°~+400°
Mounting Type:
Through Hole
Termination Style:
Axial
Temperature Coefficient:
±100ppm/°C
Package/Case:
6mm Round
Head Mechanical Itinerary:
300°±1 Rotate Smoothly
Power Rating:
0.25W
Dampness:
40±2°,RH:95%-98% 48h△R≤±3%R,R12100MΩ
Nominal Resistance Range:
1 To 10K Ohm
Resistance Tolerance:
±10%
Rated Power:
25W-500W
Element:
Chromium Alloy Wire
Coating:
Non Flammable
Type:
Slide Wire Bound Rheostat
Product Description
Detailed Specifications & Features

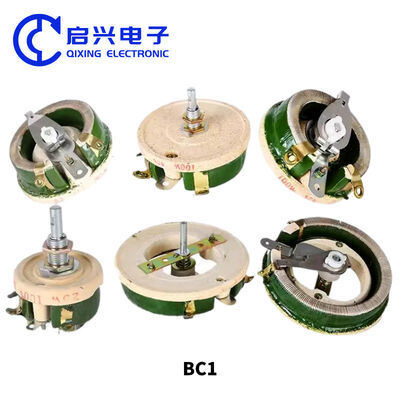

Wirewound adjustable resistor rheostat 25W 500W 100W
1.BC1 High power wirewound sliding rheostat are wound with chromium-alloy wire as a resistor element.
2.The entire component is coated non-flammable and high-temperature resin exception for the
slide contact surface.
3.After cooling and drying, insulation is applied through a high-temperature process. Installed
centered roating adjuster component slides along the resistance element to vary the
to the desired value.
4.High power rating,resistance to humidity, resistance value in great adjustable range.
5.On one resistor ,can have the different resistance requirement(flat and round wire can be in the same rheostat).
