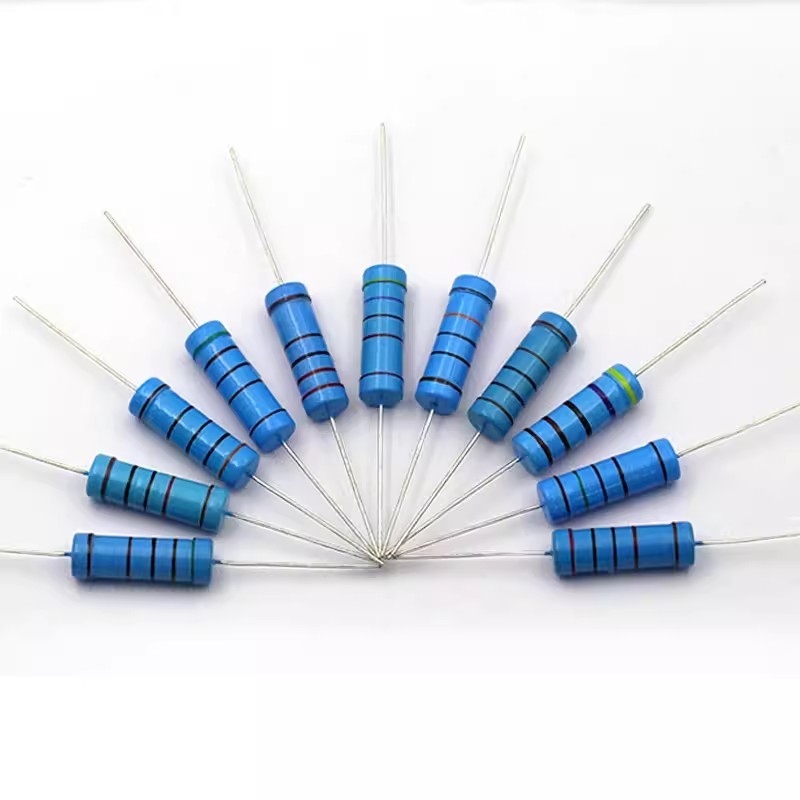

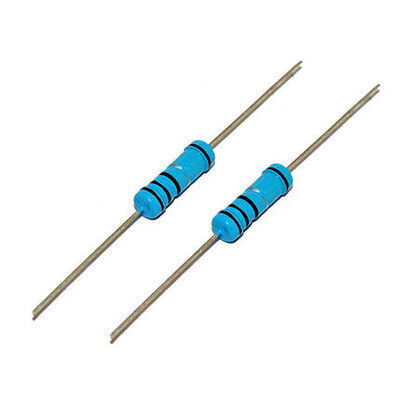

KNP Metal Film Resistor 1W 2W 3W 5% Tolerance Fixed Resistor
KNP Metal Film Resistor 1W 2W 3W 5% Tolerance Fixed Resistor
Key Attributes
Brand Name:BONENS
Model Number:Metal Film Resistor
Place of Origin:Sichuan, China
Minimum Order Quantity:1000
Product Summary
Knp 1w 2w 3w Standard Precision Wirewound Fixed Resistor Power Rating Specifications Color Code Reference Color 1st Band 2nd Band 3rd Band Multiplier Adjustment Rate Black 0 0 0 1 Brown 1 1 1 10 ±1% Red 2 2 2 100 ±2% Orange 3 3 3 1k ±3% Yellow 4 4 4 10k ±4% Green 5 5 5 100k Blue 6 6 6 1M Violet 7 7 ...
Product Details
Highlight:
Knp Metal Film
,Factory Direct Price
,Customized Specifications
Resistance:
0.01 - 100K Ohm
Resistance Tolerance:
5%, 1% Or 5%
Rated Power:
1W, 2W, 3W, 4W, 5W
Technology:
Metal Film
Type:
Fixed Resistor
Color Code:
Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Grey, White, Gold, Silver
1st Band:
0-9, -1, -2
2nd Band:
0-9, -1, -2
3rd Band:
0-9, -1, -2
Multiplier:
1, 10, 100, 1k, 10k, 100k, 1M, 10M, 100M, 1000M, 0.1, 0.01
Adjustment Rate:
±1%, ±2%, ±3%, ±4%, ±5%, ±10%
Media Available:
EDA/CAD Models
Supplier Type:
Agency
Producing Experience:
17 Years
Description:
Knp 2.2 Ohm Resistor
Type:
Metal Film Resistor
Application:
Precision Electronic Circuits
Product Description
Detailed Specifications & Features
Knp 1w 2w 3w Standard Precision Wirewound Fixed Resistor
Power Rating Specifications
Color Code Reference
| Color | 1st Band | 2nd Band | 3rd Band | Multiplier | Adjustment Rate |
|---|---|---|---|---|---|
| Black | 0 | 0 | 0 | 1 | |
| Brown | 1 | 1 | 1 | 10 | ±1% |
| Red | 2 | 2 | 2 | 100 | ±2% |
| Orange | 3 | 3 | 3 | 1k | ±3% |
| Yellow | 4 | 4 | 4 | 10k | ±4% |
| Green | 5 | 5 | 5 | 100k | |
| Blue | 6 | 6 | 6 | 1M | |
| Violet | 7 | 7 | 7 | 10M | |
| Grey | 8 | 8 | 8 | 100M | |
| White | 9 | 9 | 9 | 1000M | |
| Gold | -1 | -1 | -1 | 0.1 | ±5% |
| Silver | -2 | -2 | -2 | 0.01 | ±10% |
Dimensions
Detailed dimensional specifications available in product images.
