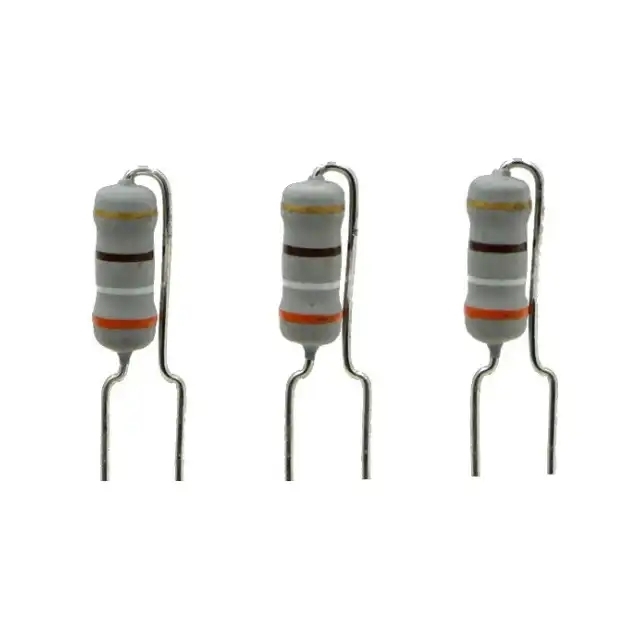

400 Ohm 1W Fuse Resistor with 5% Tolerance
400 Ohm 1W Fuse Resistor with 5% Tolerance
Key Attributes
Brand Name:BONENS
Model Number:Metal Film Resistor
Place of Origin:Sichuan, China
Minimum Order Quantity:1000
Product Summary
50k/50/10/100/400/2/5/1ohm Fuse Resistor Color Code Product Overview Fuse resistors provide circuit protection by steadily cutting off power supply when short circuits or near-short circuit current conditions occur. These components limit short circuit current to prevent damage to devices or power ...
Product Details
Highlight:
400 Ohm Fuse
,Factory Direct Price
,Customized Specifications
Resistance:
0.01 - 1000M
Resistance Tolerance:
5%, 1% Or 5%
Power:
1W 2W 3W 4W 5W
Technology:
Carbon Film
Composition:
Wirewound
Max Working Voltage:
150V - 750V
Max Overload Voltage:
300V - 800V
Max Insulation Voltage:
250V - 1000V
Length:
6.0 - 52.0 Mm
Diameter:
2.3 - 8.0 Mm
Lead Diameter:
0.52 - 0.75 Mm
Resistance Range:
0R01 - 33K
Type:
Fixed Resistor
Heat Dissipation:
Strong
Flame Retardant:
Yes
Type:
Metal Film Resistor
Application:
Precision Electronic Circuits
Product Description
Detailed Specifications & Features
50k/50/10/100/400/2/5/1ohm Fuse Resistor Color Code
Product Overview
Fuse resistors provide circuit protection by steadily cutting off power supply when short circuits or near-short circuit current conditions occur. These components limit short circuit current to prevent damage to devices or power supply systems, containing potential damage to a small area.
Applications
- Portable mobile devices (tablets, laptops)
- High power devices and electric tools
- Electric bicycles
- Rechargeable lithium battery systems

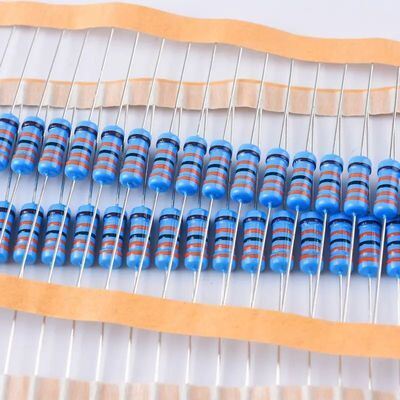

Product Images
Wire-Wound Resistors
Wire-wound resistors serve multiple functions in electrical circuits including voltage reduction, current shunting, load management, feedback transmission, and matching. They are essential components in power supply circuits, oscillation circuits, and pulse formation circuits.
Key Features
- Dual function as fuse and resistor
- Overcurrent protection with thermal fusing
- Strong heat dissipation capacity
- Safety and flame retardant properties
- High performance with low resistance
- Compact size with large load capacity
Applications
- Home appliances
- Medical equipment
- Automotive industry
- Railway and aviation systems
- defense equipment and instruments
Product Parameters
Winding Resistance Specifications
| Type | Pack Quantity | Box Quantity | Available Values |
|---|---|---|---|
| 0.25W | 1000/pack | 5000/box | 0R22, 1R, 3R3, 4R7, 10R, 20R, 22R, 27R, 30R, 47R, 51R, 68R |
| 0.5W | 500/pack | 2000/box | 0R1, 0R22, 0R33, 0R39, 0R47, 0R5, 1R, 2R, 2R2, 3R, 3R3, 3R6, 3R9, 4R7, 5R1, 5R6, 6R8, 8R2, 10R, 12R, 15R, 22R, 27R, 30R, 33R, 39R, 47R, 51R, 68R, 100R |
| 1W | 200/pack | 1000/box | 0R1, 0R12, 0R15, 0R18, 0R20, 0R22, 0R33, 0R47, 0R5, 1R, 1R5, 2R, 2R2, 3R, 3R3, 3R6, 3R9, 4R7, 5R1, 5R6, 6R8, 8R2, 10R, 12R, 15R, 20R, 22R, 27R, 30R, 33R, 39R, 47R, 51R, 56R, 62R, 68R, 75R, 100R, 0R05 5% |
| 2W | 200/pack | 1000/box | 0R1, 0R15, 0R22, 0R33, 1R, 2R, 2R2, 2R4, 4R7, 5R1, 10R, 20R, 22R, 27R, 30R, 33R, 36R, 39R, 43R, 47R, 51R, 68R, 75R, 82R |
Dimensions and Voltage Performance
| Part No. | Power | Resistance Range | Dimensions (mm) | Max. Working Voltage | Max. Overload Voltage | Max. Insulation Voltage |
|---|---|---|---|---|---|---|
| KNR014 | 1/4W | 0R5-750R | 6.0×2.3×0.52 | 150V | 300V | 250V |
| KNR012 | 1/2W | 0R01-1K5 | 9.0×3.2×0.58 | 150V | 400V | 250V |
| KNR01B | 1W | 0R01-1K5 | 9.0×3.2×0.75 | 150V | 400V | 250V |
| KNR02B | 2W | 0R01-3K3 | 11.0×4.5×0.75 | 250V | 400V | 350V |
| KNR03B | 3W | 0R017K7 | 15.0×5.0×0.75 | 350V | 600V | 500V |
| KNR04B | 4W | 0R01-8K2 | 17.0×6.0×0.75 | 350V | 600V | 500V |
| KNR05B | 5W | 0R0l -8K2 | 17.0×6.0×0.75 | 350V | 600V | 500V |
| KNR06B | 6W | 0R02H2K | 25.0×8.0×0.75 | 500V | 600V | 750V |
| KNR07B | 7W | 0R03~WK | 31.0×8.0×0.75 | 500V | 600V | 750V |
| KNR08B | 8W | 0R03~27K | 41.0×8.0×0.75 | 500V | 600V | 750V |
| KNR09B | 9W | 0R04~33K | 52.0×8.0×0.75 | 750V | 800V | 1000V |
| KNR10B | 10W | 0R04〜33K | 52.0×8.0×0.75 | 750V | 800V | 1000V |
