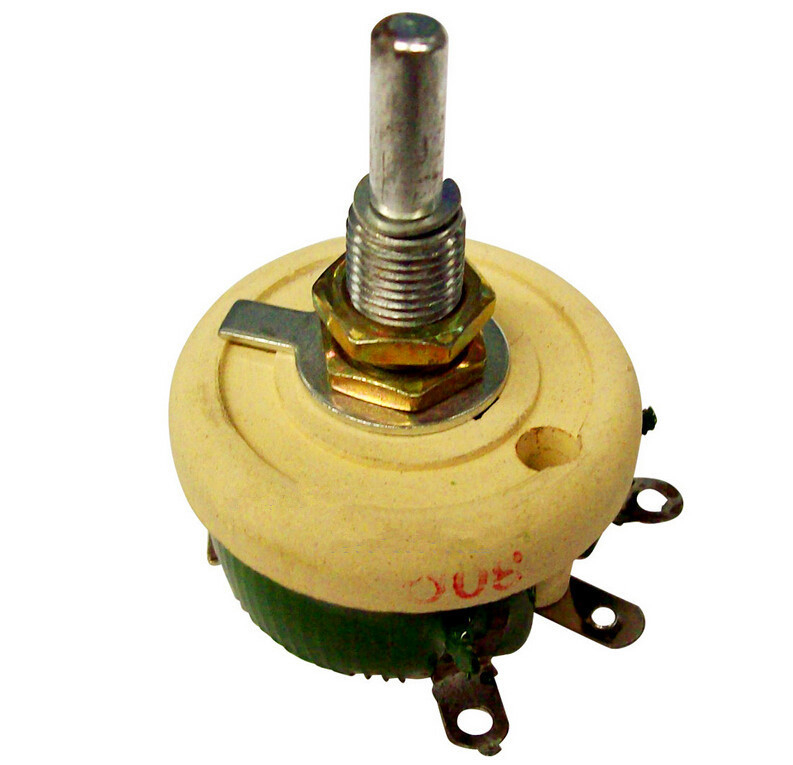

BC1 25W-50W Ceramic Wirewound Variable Resistor 1-10kΩ ±10% Tolerance

Basic Properties
Country Of Origin
Sichuan, China
Brand Name
China
Product Model
BCI
Trading Properties
MOQ
100
Tags:

Variable Resistor

High Power Resistor

wirewound rotary resistor
Product Details
Highlight:

ceramic wirewound variable resistor

,

25W-50W variable resistor

,

10kΩ variable resistor with warranty
Resistance Range: 1Ω~5KΩ
Resistance Tolerance: ±10%
Terminal Resistance: ≤0.2% Or 1Ω
Insulation Resistance: ≥100mΩ (500Vdc)
Maximum Voltage: 1000V
Insulation Voltage: 2500V
Temperature Range: -55℃~350℃
Maximum Heating Temperature: 350℃
Sliding Itinerary: 280±5° (25-50W), 300±5° (≥100W)
Rotation Cycles: 5000 Weeks
Vibration Resistance: 10~200HZ, 40m/S2, 3h△R≤±3%R
Temperature Circulation: -55° To 85°, 30min Each
Dampness Resistance: 40±2°C, RH:95%-98%, 48h△R≤±3%R
Load Resistance: R≤1KΩ, 5000 Cycles, △R≤±5%R
Shock Resistance: 60~100 Times/min, 150m/s2, 4000 Times
Product Description
Detailed Specifications & Features
BC1 Series High Power Wirewound Potentiometer Rotary Rheostat
BC1 25W-50W Ceramic Wirewound Variable Resistor 1-10kΩ ±10% Tolerance 0 BC1 25W-50W Ceramic Wirewound Variable Resistor 1-10kΩ ±10% Tolerance 1 BC1 25W-50W Ceramic Wirewound Variable Resistor 1-10kΩ ±10% Tolerance 2 BC1 25W-50W Ceramic Wirewound Variable Resistor 1-10kΩ ±10% Tolerance 3

The BC-1 wire wound resistor features high resolution capability with a wide resistance range. Designed for durability, it offers excellent heat resistance, humidity resistance, and wear resistance characteristics. Suitable for voltage and current adjustment in power equipment and circuits not exceeding 380V AC or 220V DC.

Technical Specifications
  • Maximum working voltage: 1000V (insulation voltage 2500V)
  • Temperature rise: 25-100W models ≤300K; ≥150W models ≤350K
  • Sliding travel: 25-50W models: 280±5°; ≥100W models: 300±5°
  • Linear deviation: Not greater than ±10% across entire travel
  • Rotation durability: 5,000 cycles with not less than 90% travel
  • High temperature test: 40°C for 6 weeks, insulation resistance <1.5mΩ
Product Features

The BC1 series rotor-arm sliding wire porcelain disk variants are designed for voltage and current adjustment in industrial electrical equipment up to 500 volts. The resistor uses high-quality resistance wire wound on a ceramic skeleton, coated with high-temperature enamel except for the sliding contact surface. Features metal protective housing with handwheel operation.

Technical Parameters
ELECTRICAL CHARACTERISTICS ENVIRONMENT CHARACTERISTICS
Standard resistance range 1Ω~5KΩ Temperature range -55℃~350℃
Resistance tolerance ±10% Vibration 10~200HZ,40m/S², 3h△R≤±3%R
Terminal resistance ≤0.2% or 1Ω Temperature cycling -55°C to 85°C, △R<+3%R
Insulation resistance ≥100mΩ(500Vdc) Humidity 40±2°C, RH:95%-98%
Maximum temperature 350℃ Load durability 5000 cycles (R≤1KΩ)
Mechanical travel 300°±10° Shock resistance 60~100 times/min, 150m/s²
Applications

Ideal for telecommunications, railway systems, electrical equipment, medical devices, industrial machinery, and low-frequency AC/DC electrical equipment requiring voltage/current regulation or adjustable load resistance.
