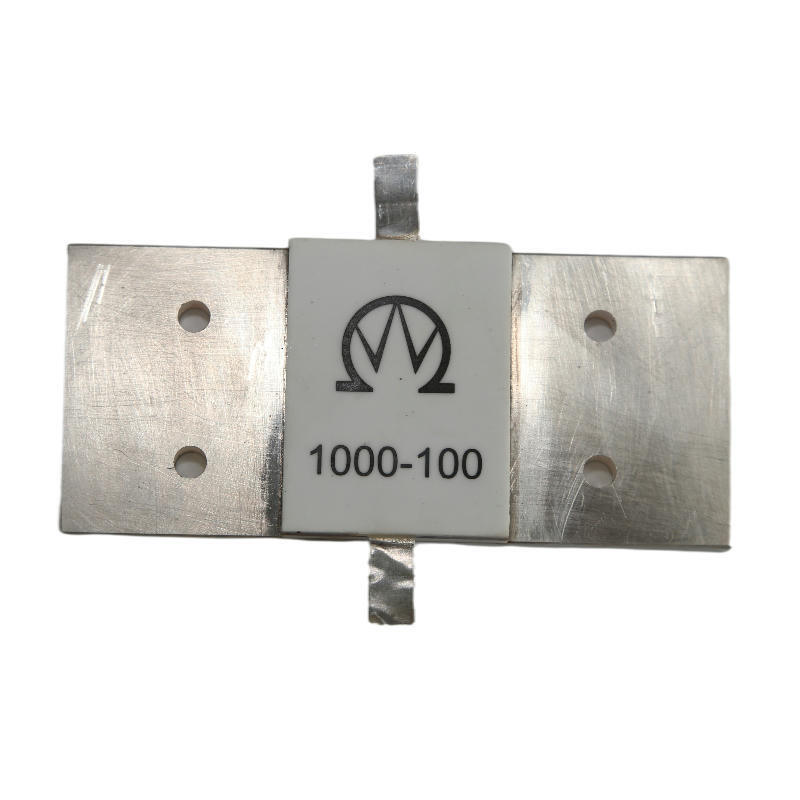

500W 50 Ohm Flange Mount RF Resistor with High Power Termination
500W RF Resistor
,50 Ohm Termination Resistor
,Flange Mount RF Resistor
Power Load Sheets, RF Resistors, Flange Resistors, Microstrip Resistors, RF Thick Film Resistors, Microwave Resistors, Load Resistors, Attenuation Resistors, Coupler Resistors
- Compact size with high power capacity
- Excellent high-frequency characteristics
- Reliable performance and easy installation
- Ideal for power distributors, isolation resistance, and terminal load resistors
Our high-power resistors feature excellent high-frequency characteristics with thick film non-inductive design. Suitable for reflow soldering and wave soldering processes, they offer low assembly costs and compatibility with SMT automatic mounting equipment. With high mechanical strength and exceptional stability, these resistors provide long service life for RF circuits, high-frequency circuit isolation resistors, communication base station terminal loads, couplers, and more.
Flange double-lead resistors are essential passive components in electronic circuits, serving to balance circuits by adjusting resistance values to achieve current or voltage equilibrium. This ensures stable circuit operation in electronic devices and communication systems.
The flange dual-lead resistor assembly combines a flange and dual-lead resistor through welding. The flange facilitates easy circuit installation while providing superior heat dissipation during operation.
- Easy Installation: Standard dimensions allow for straightforward installation without special tools
- Excellent Stability: High-quality resistor materials ensure stable resistance values with minimal temperature coefficient
- High Precision: Advanced resistor materials deliver superior accuracy and reliability
- Strong Interchangeability: Compatible with resistors of different specifications and models
| Electrical Characteristics | |||
|---|---|---|---|
| Range of nominal resistance | 1 ~500Ω | ||
| Resistance tolerance | ±5% | ||
| Frequency range | 0~2GHz | ||
| Standing wave ratio | 1.2~1.3 | ||
| Insulation resistance | ≥ 1GΩ | ||
| Withstand voltage | 500V/1 mm (Substrate thickness) | ||
| Environment Characteristics | |||
| Rated power | 1~1000W (70°C) | ||
| Temperature range | -55°C~+165°C | ||
| TCR | ±300×10-6/°C | ||
| Temperature shock (-55°C/+125°C, 3 times) | ΔR≤±5%R | ||
| Moisture proof (GJB306A-96-Method106) | ΔR≤±5%R | ||
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±3%R, No mechanical damage | ||
| Test at low temperature (-55°C, 24h) | ΔR≤±5%R | ||
| Load life (96) | ΔR≤±5% | ||
| Collision | ΔR≤±3%R | ||
| Physical Characteristics | |||
| Terminal strength(10N,5S) | No loose and fall off | ||
| Solderability(240℃,3s) | Tin layer covering area of 95% | ||
