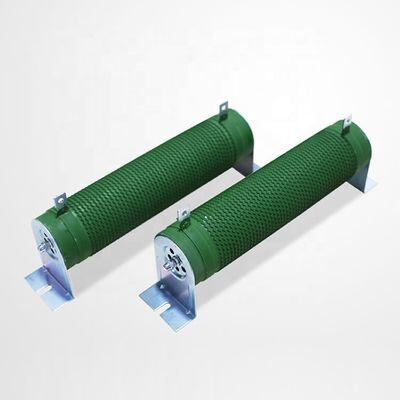

1000W Fixed Aluminum Shell Braking Resistor Ceramic Composition Wirewound Resistor

Name: 1000W Fixed Aluminum Shell Braking Resistor Ceramic Composition Wirewound Resistor
Brand: Sichuan Qixing Electronics Co., Ltd.
SKU: RX20-500W
Price: 2.25 USD
Availability: InStock

Key Attributes

Brand Name:BONENS

Model Number:RX20-500W

Place of Origin:Sichuan, China

Minimum Order Quantity:1

Product Summary

1000W aluminum shell braking resistor with 1Ω-30KΩ range and ±5% tolerance. Features wirewound construction, 150PPM temperature coefficient, and certifications including ISO9001, TUV, RoHS. Ideal for industrial automation, energy braking, and heavy-duty applications.

Product Details

Highlight:

1000W Fixed Power Rating

Aluminum Shell Cooling

Industrial Braking Use

Resistance: 1Ω-30KΩ

Resistance Tolerance: ±5%

Temperature Coefficient: 150PPM

Rated Power: 10W-5000W

Composition: Ceramic Composition

Working Voltage: <1.2kV

Maximum Voltage: 3000V

Maximum Accuracy: 1%

IP Rating: IP00

Vibration Resistance: 0.5g

Temperature Drift: ≤400ppm/°C

Operating Temperature: -55°C~+275°C

Dimensions D: 14-150mm

Dimensions l1: 40-690mm

Weight: 0.02-18kg

Rated Power: 1000W

Type: Fixed Wirewound

Housing: Aluminum Shell

Composition: Ceramic

Application: Industrial Braking, Power Dissipation

Product Description

Detailed Specifications & Features

1000W Fixed Aluminum Shell Braking Resistor Resistance

Product Overview

High-performance wirewound resistors designed for industrial braking applications and power dissipation.

RX20 Wirewound Resistor

Coated with painted wire-wound resistors for insulation and high temperature resistance, featuring high power capacity, strong overload resistance, and high voltage withstand capability.

Rated power: 10W~6KW
Working voltage: <1.2kV
Rated resistance: 0.1Ω~10KΩ
Maximum withstand voltage: 3000V
Maximum accuracy: 1%
IP rating: IP00
Vibration: 0.5g
Temperature drift: ≤400ppm/°C
Working temperature: -55°C~+275°C
Application fields: simulated load, discharge equipment, industrial/automation industry

RXHG Corrugated Wirewound Resistor

Features vertical corrugation resistance wire for enhanced heat dissipation and reduced parasitic inductance, with insulation coating for high temperature applications.

Rated power range: 10W~6000W
Working voltage range: <1.2kV
Rated resistance range: 0.1Ω~25KΩ
Maximum withstand voltage: 3000V
Maximum accuracy: 1%
IP rating: IP00
Vibration: 0.5g
Temperature drift range: ≤400ppm/°C
Working temperature range: -55°C~+275°C
Application fields: simulated load experiment, equipment discharge, automatic control, inverter energy consumption braking

RX20-T Adjustable Resistor

Flat-wound resistance wire design for optimal heat dissipation and minimal parasitic inductance, with insulating high temperature resistant coating.

Rated power: 50W~6000W
Working voltage: <1.2kV
Rated resistance: 1Ω~5KΩ
Maximum withstand voltage: 3000V
Maximum accuracy: 1%
IP rating: IP00
Vibration: 0.5g
Temperature drift range: ≤400ppm/°C
Working temperature range: -55°C~+275°C
Application fields: simulated load experiment, equipment discharge, automatic control, inverter energy consumption braking

RXG20 Glazed Resistor

Features moisture resistance, high insulation, strong overload capacity, excellent thermal stability and long service life.

Rated power range: 8W~500W
Operating voltage range: <1.5kV
Rated resistance range: 0.1Ω~90KΩ
Maximum withstand voltage: 3500V
Maximum accuracy: 1%
IP rating: IP00
Vibration: 0.5g
Temperature drift range: ≤400ppm/°C
Operating temperature range: -55°C~+375°C
Application fields: large power supply, power equipment, electrical equipment, locomotives

RXG20-T Glazed Resistor

Adjustable glazed wirewound resistor offering moisture resistance, high insulation, strong overload capacity, thermal stability and extended service life.

Rated power range: 8W~500W
Working voltage range: <1.5kV
Rated resistance range: 0.1Ω~90KΩ
Maximum withstand voltage: 3500V
Maximum accuracy: 1%
IP rating: IP00
Vibration: 0.5g
Temperature drift range: ≤400ppm/°C
Working temperature range: -55°C~+375°C
Application fields: large power supply, power equipment, electrical equipment, locomotive

Technical Specifications

Rated power (W)	D±2	L1±2	L2±5	L3±3	N±1	Φ±1	Reference weight (KG)	Resistance accuracy	Temperature Coefficient
10W	14	40	/	/	5	3	0.02	±5%	±250PPm
15W	14	45	/	/	5	3	0.02
20W	16	50	85	100	6	3	0.05
25W	20	50	85	100	6	3	0.05
30W	20	70	105	120	6	3	0.06
40W	20	90	125	140	6	3	0.08
50W	28	90	130	150	9	4	0.1
75W	28	140	180	200	9	4	0.15
100W	28	170	210	230	9	4	0.18
150W	28	215	250	270	9	4	0.22
200W	28	267	300	320	9	4	0.23
250W	28	267	300	320	9	4	0.32
300W	40	267	287	307	12	6	0.32
400W	40	300	320	240	12	6	0.36
500W	50	300	320	340	14	6	0.55
600W	50	300	320	340	14	6	0.95
800W	60	300	330	335	16	6	1
1000W	70	300	330	335	16	6	1.2
1200W	70	360	390	415	16	6	1.6
1500W	70	420	450	470	16	6	2
2000W	60	510	540	560	16	6	2.3
2500W	70	510	540	560	16	6	2.7
3000W	80	430	470	500	16	6	3
4000W	100	400	440	465	16	7	3.5
5000W	100	500	540	560	16	7	4.5
6000W	100	600	640	660	16	7	5.8
8000W	150	600	690	740	25	15	18
9000W	150	600	690	740	25	15	18
10KW	150	600	690	740	25	15	18
