5000W Adjustable Ceramic Composition Wirewound Power Resistor Variable Resistor
Basic Properties
Country Of Origin
Sichuan, China
Brand Name
bonens
Product Model
RX20
Trading Properties
MOQ
3
Product Details
Highlight:
5kW wirewound power resistor
,5000W variable resistor
,high-power wirewound resistor
Description:
5kW 5000W Wirewound Variable Resistor
Resistance:
0.50-30KΩ, 1R-100KR
Resistance Tolerance:
±5%, +/-5%
Type:
Fixed Resistor
Technology:
Ceramic Composition
Package Type:
Throught Hole
Throught Hole:
1ohm-100Kohm
D/C:
2021
Rated Power:
5000W
Temperature Coefficient:
PTC
Media Available:
Product Description
Detailed Specifications & Features
Product Description

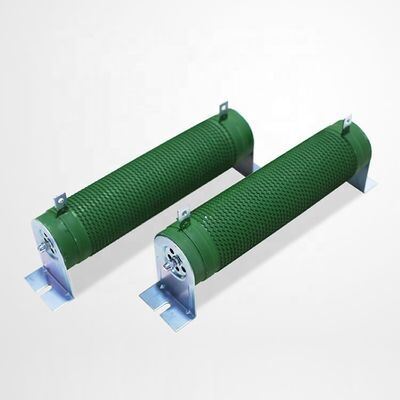

Power Resistor 5kw 5000w Wirewound Variable Resistor
1.5000 watt adjustable resistor ceramic tube wirewound resistor variable resistor Rated Power : 5000W Size: 500mm length & 100mm diameter Resistance value：1RJ 2RJ 3RJ 4RJ 6RJ.......10KRJ Type : Adjustable 2.Features: (1) Resistance surface is paint, power range is wide. (2)Excellent high temperature load performance. (3)Full welded structure. (4)High reliability. 3.Range of application: (1)Mainly used for large power supply. (2)Electric power equipment. (3)Electrical equipment. (4)The locomotive, etc. |
4.Specifications and dimentions: |
Rated power (W) | Dimensions（MM) | Reference weight （KG) | Resistance accuracy | Temperature Coefficient | ||||||||||
D±2 | L1±2 | L2±5 | L3±3 | N±1 | Φ±1 | |||||||||
10W | 14 | 40 | / | / | 5 | 3 | 0.02 | ±5% | ±250PPm | |||||
15W | 14 | 45 | / | / | 5 | 3 | 0.02 | |||||||
20W | 16 | 50 | 85 | 100 | 6 | 3 | 0.05 | |||||||
25W | 20 | 50 | 85 | 100 | 6 | 3 | 0.05 | |||||||
30W | 20 | 70 | 105 | 120 | 6 | 3 | 0.06 | |||||||
40W | 20 | 90 | 125 | 140 | 6 | 3 | 0.08 | |||||||
50W | 28 | 90 | 130 | 150 | 9 | 4 | 0.1 | |||||||
75W | 28 | 140 | 180 | 200 | 9 | 4 | 0.15 | |||||||
100W | 28 | 170 | 210 | 230 | 9 | 4 | 0.18 | |||||||
150W | 28 | 215 | 250 | 270 | 9 | 4 | 0.22 | |||||||
200W | 28 | 267 | 300 | 320 | 9 | 4 | 0.23 | |||||||
250W | 28 | 267 | 300 | 320 | 9 | 4 | 0.32 | |||||||
300W | 40 | 267 | 287 | 307 | 12 | 6 | 0.32 | |||||||
400W | 40 | 300 | 320 | 240 | 12 | 6 | 0.36 | |||||||
500W | 50 | 300 | 320 | 340 | 14 | 6 | 0.55 | |||||||
600W | 50 | 300 | 320 | 340 | 14 | 6 | 0.95 | |||||||
800W | 60 | 300 | 330 | 335 | 16 | 6 | 1 | |||||||
1000W | 70 | 300 | 330 | 335 | 16 | 6 | 1.2 | |||||||
1200W | 70 | 360 | 390 | 415 | 16 | 6 | 1.6 | |||||||
1500W | 70 | 420 | 450 | 470 | 16 | 6 | 2 | |||||||
2000W | 60 | 510 | 540 | 560 | 16 | 6 | 2.3 | |||||||
2500W | 70 | 510 | 540 | 560 | 16 | 6 | 2.7 | |||||||
3000W | 80 | 430 | 470 | 500 | 16 | 6 | 3 | |||||||
4000W | 100 | 400 | 440 | 465 | 16 | 7 | 3.5 | |||||||
5000W | 100 | 500 | 540 | 560 | 16 | 7 | 4.5 | |||||||
6000W | 100 | 600 | 640 | 660 | 16 | 7 | 5.8 | |||||||
8000W | 150 | 600 | 690 | 740 | 25 | 15 | 18 | |||||||
9000W | 150 | 600 | 690 | 740 | 25 | 15 | 18 | |||||||
10KW | 150 | 600 | 690 | 740 | 25 | 15 | 18 | |||||||
5.Rated temperature drop curve: |
