3W Single Turn Carbon Film Potentiometer RV30YN20S RV30YN B104 100K
3W Single Turn Carbon Film Potentiometer RV30YN20S RV30YN B104 100K
Key Attributes
Brand Name:BONENS
Model Number:RV30YN20S
Place of Origin:Sichuan, China
Standard Packaging:Carton packaging
Product Summary
3W single-turn carbon film potentiometer RV30YN20S RV30YN B104 100K product name: RV30 B1K 2K 3K 5K 10K 20K 30K 50K 100K 200K 500k adjustable resistance Single-turn carbon film potentiometer RV30YN20S product description: RV30YN20S single coil carbon film potentiometer, rated power 3W, shaft ...
Product Details
Highlight:
3W Single Turn
,B104 100K
,RV30YN Series
Dielectric Strength:
≥500VAC
Housing Material:
Aluminum Alloy
Insulation Resistance:
≥100MΩ
Linearity:
≤±5%
Power Rating:
0.5W~3W
Product Name:
Wirewound Potentiometer
Resistance Range:
0.1Ω~100KΩ
Resistance Tolerance:
±10%
Rotation Torque:
≤20mN.m
Rotational Angle:
300°~360°
Rotational Life:
≥10000 Cycles
Sliding Noise:
≤50mV
Temperature Range:
-55℃~+155℃
Terminal Strength:
≥1N
Terminal Type:
Solder Lug
Type:
Single Turn Rotary
Technology:
Carbon Film
Power:
3W
Resistance:
B1K, 2K, 3K, 5K, 10K, 20K,...
Product Description
Detailed Specifications & Features

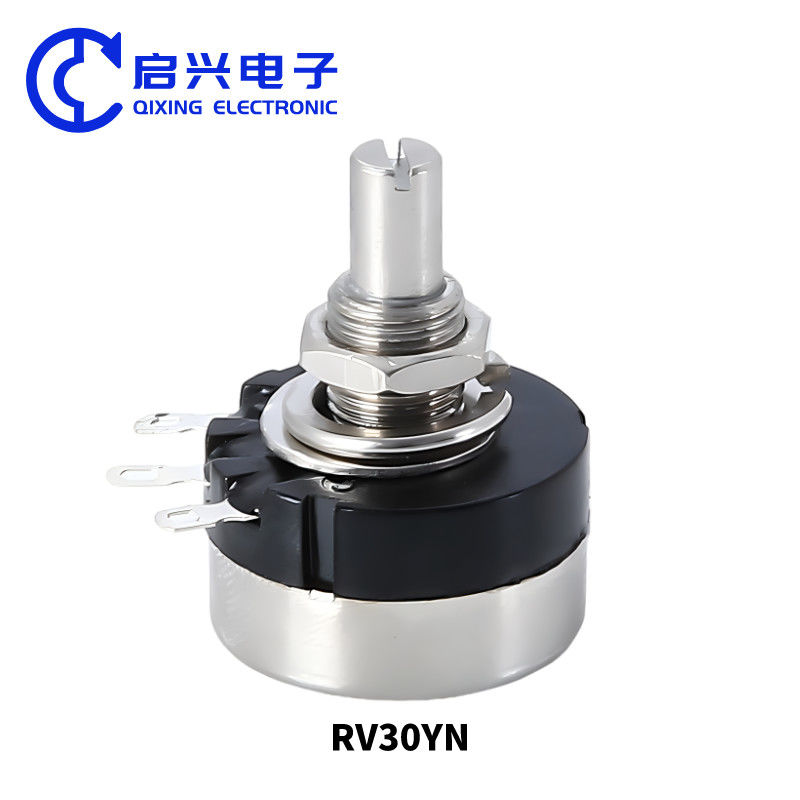

3W single-turn carbon film potentiometer RV30YN20S RV30YN B104 100K
product name:
RV30 B1K 2K 3K 5K 10K 20K 30K 50K 100K 200K 500k adjustable resistance Single-turn carbon film potentiometer RV30YN20S
product description:
RV30YN20S single coil carbon film potentiometer, rated power 3W, shaft diameter 6mm, shaft length 20mm, outer diameter 30mm, shaft end slotted, resistance tolerance ± 10%, mechanical stroke 300 ° ± 5 ° C temperature range -10 ℃ -85 ℃, rotational life 20000 revolutions, power 3W, packaging 20pcs/box
The resistance values of the RV30YN20S single coil carbon film potentiometer include: 100R, 200R, 500R, 1K, 2K, 5K, 10K, 20K, 50K, 100K, 200K, 500K, 1M, etc
Product Features:
Advantages of RV30YN20S Single Coil Carbon Film Potentiometer Product
1. High structure of the action mechanism: excellent craftsmanship, smooth operation, reliable and stable performance, wide application range of insulation and dustproof wiring ports, high protection level
2. Excellent accessory precision quality: Made of copper and silver contact material, it enhances conductivity and personnel sensitivity, making the product's bearing capacity stronger, just to ensure quality
3. Preferred thickened iron shell material: Iron material is corrosion-resistant, has high mechanical strength, long service life, reliable performance, and is capable of resisting adverse weather conditions
1. High structure of the action mechanism: excellent craftsmanship, smooth operation, reliable and stable performance, wide application range of insulation and dustproof wiring ports, high protection level
2. Excellent accessory precision quality: Made of copper and silver contact material, it enhances conductivity and personnel sensitivity, making the product's bearing capacity stronger, just to ensure quality
3. Preferred thickened iron shell material: Iron material is corrosion-resistant, has high mechanical strength, long service life, reliable performance, and is capable of resisting adverse weather conditions
Product size:
Specification parameters:
|
Electrical characteristic:
|
|||
|
|
B50Ω~B2MΩ
|
||
|
A,C:1KΩ~2MΩ
|
|||
|
Resistance tolerance
|
±10%
|
||
|
End resistance
|
≤3Ω
|
||
|
|
B(Linear)
|
||
|
A(Logarithm)
|
|||
|
C(Reverse log)
|
|||
|
Contact resistance variation
|
3% or 3Ω,whichever is greater
|
||
|
|
B:0.25W/40℃,0W/85℃
|
||
|
AC:0.125W/40℃,0W/85℃
|
|||
|
|
B:DC315V or power rating.whichever is smaller
|
||
|
AC:DC200V or power rating.whichever is smaller
|
|||
|
Insilation resistance
|
≥100MΩ
|
||
|
Dielectric strength
|
AC1000V 1 Minute
|
||
|
Electrical angle
|
280°±10°
|
||
|
Environmental characteristic:
|
|||
|
Soldering heat
|
350℃ 3sec
|
||
|
Rotation life
|
15,000 cycles
|
||
|
Load life
|
1000 hours with rating load
|
||
|
|
3 directions for 2 hours each,
|
||
|
Amplitude 1.5mm
|
|||
|
Temperature characteristic
|
-10℃ 30 minutes without load
|
||
|
Low temperature exposure
|
1 hour without load
|
||
|
Moisture and load lift
|
40℃ 90~95%RH 500 hours
|
||
|
Mechanical characteristic:
|
|||
|
Mechanical angle
|
300°±5°
|
||
|
Shaft torque
|
5~30mN.m(51~306gf.cm)
|
||
|
Stop strength
|
900mN.m min.(9.18kgf.cm min.
|
||
|
Operating temp.range
|
-10℃~+85℃
|
||
|
Solderability
|
235℃,5 sec
|
||
|
Nut tightening torque
|
1470mN.m max.(15kgf.cm max.)
|
||
|
Shaft diameter | 6mm |
| Shaft end | slotted | |
| Standard shaft length | 20mm | |
| Outer diameter | 30MM | |
| Resistance tolerance | ±10% | |
| Mechanical stroke | 300°± 5° | |
| Temperature range | -10 ℃ -85 ℃ | |
| Rotation life | 20000 cycles | |
| Power | 3W |
| RV30YN series adjustable resistance value table | |||
| 102(1K) | 103(10K) | 104(100K) | 105(1M) |
| 202(2K) | 203K(20K | 254(250K) | 205(2M) |
| 502(5K) | 503(50K) | 504(500K) | 505(5M) |
application area:
The RV30YN20S single coil carbon film potentiometer is mainly used in instruments, precision mechanical equipment, welding equipment, audio equipment, automation equipment, communication, medical facilities, frequency converters, game consoles, UPS power supplies, etc
