Product Details
Place of Origin: China
Brand Name: BONENS
Model Number: rv24yn20s
Payment & Shipping Terms
Packaging Details: Carton packaging
Model Number: |
RV24YN-20S |
Type: |
Rotary Potentiometer |
Brand Name: |
Bonens |
Technology: |
Carbon Composition |
Resistance: |
10K-100K |
Resistance Tolerance: |
2%,5% |
Rated Power: |
0.25W |
Electrical Angle: |
280°±10° |
Packaging: |
20PCS/1 Box |
Model Number: |
RV24YN-20S |
Type: |
Rotary Potentiometer |
Brand Name: |
Bonens |
Technology: |
Carbon Composition |
Resistance: |
10K-100K |
Resistance Tolerance: |
2%,5% |
Rated Power: |
0.25W |
Electrical Angle: |
280°±10° |
Packaging: |
20PCS/1 Box |

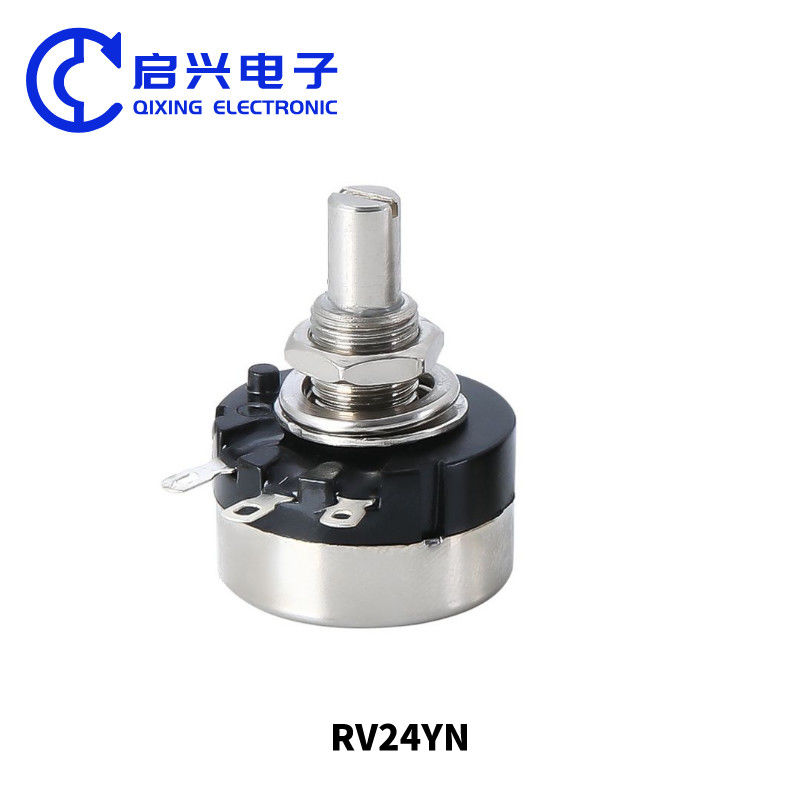

rv24yn20s single turn carbon film rotary potentiometer RV24YN adjustable resistor
product name:
rv24yn20s single turn carbon film rotary potentiometer RV24YN adjustable resistor B103 502 1K 2K 10K 5K 1M
product description:
RV24YN20s is a commonly used Potentiometer. Its working principle is that when the shaft rotates externally, the contact rod and two contacts are connected or disconnected through the action of elastic pieces to achieve the function of switch. The contact performance of rv24yn20s is good, and the material is generally made of silver tungsten alloy with good conductivity. The switch can withstand high current and arc resistance. When adjusting the Potentiometer rv24yn20s, the switch function will be carried out through the axial rotation pull action. Repeated action will not affect the adjustment of the Potentiometer, so it is also conducive to extending the life of the Potentiometer. The RV24YN20S single turn carbon film rotary Potentiometer is widely used in: instrumentation, audio equipment, automation equipment, welding equipment, frequency converter, game machine, communication, medical facilities, UPS power supply and other industries.
Specification parameters:
Electrical characteristic: | |
Total resistance range | B50Ω~B2MΩ A,C:1KΩ~2MΩ |
Resistance tolerance | ±10% |
End resistance | ≤3Ω |
Resistance taper | B(Linear) A(Logarithm) C(Reverse log) |
Contact resistance variation | 3% or 3Ω,whichever is greater |
Power rating | B:0.25W/40℃,0W/85℃ |
AC:0.125W/40℃,0W/85℃ | |
Max.input voltage | B:DC315V or power rating.whichever is smaller |
AC:DC200V or power rating.whichever is smaller | |
Insilation resistance | ≥100MΩ |
Dielectric strength | AC1000V 1 Minute |
Electrical angle | 280°±10° |
Environmental characteristic: | |
Soldering heat | 350℃ 3sec |
Rotation life | 15,000 cycles |
Load life | 1000 hours with rating load |
vibration | 3 directions for 2 hours each, |
Amplitude 1.5mm | |
Temperature characteristic | -10℃ 30 minutes without load |
Low temperature exposure | 1 hour without load |
Moisture and load lift | 40℃ 90~95%RH 500 hours |
Mechanical characteristic: | |
Mechanical angle | 300°±5° |
Shaft torque | 5~30mN.m(51~306gf.cm) |
Stop strength | 900mN.m min.(9.18kgf.cm min. |
Operating temp.range | -10℃~+85℃ |
Solderability | 235℃,5 sec |
Nut tightening torque | 1470mN.m max.(15kgf.cm max.) |
Product Features:
▶ 24mm diameter, single-turn industrial panel controls
▶ Carbon film element
▶ Linear or audio tapers Single, tandem and triple units
▶ single shaft; dual unit, dual shaft
▶ SPSTor SPDT switch with 1A or 3A rating Shaft lock and center tap models
▶ Metal shaft and bushing
▶ Panel mount only
▶ Right angle ear-lug terminals6mm diameter shafts in slot, flat or round end styles
▶ Standard 15mm or 20mm shaft length
size:
Application field:
Carbon film potentiometers are generally used in medical equipment, mixers, toys, audio cars, power amplifiers, and radios. DVD/VCD televisions, electronic message devices, earphone lighting fixtures, and other related electronic digital and electronic devices.
application area:

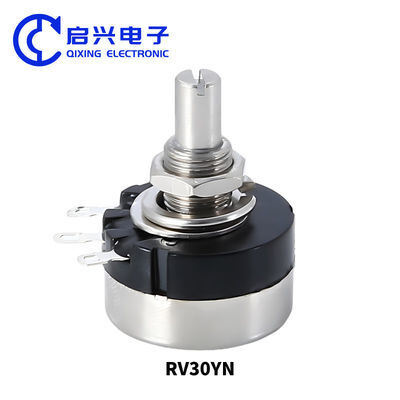

The RV30YN20S single coil carbon film potentiometer is mainly used in instruments, precision mechanical equipment, welding equipment, audio equipment, automation equipment, communication, medical facilities, frequency converters, game consoles, UPS power supplies, etc
product catalog:
