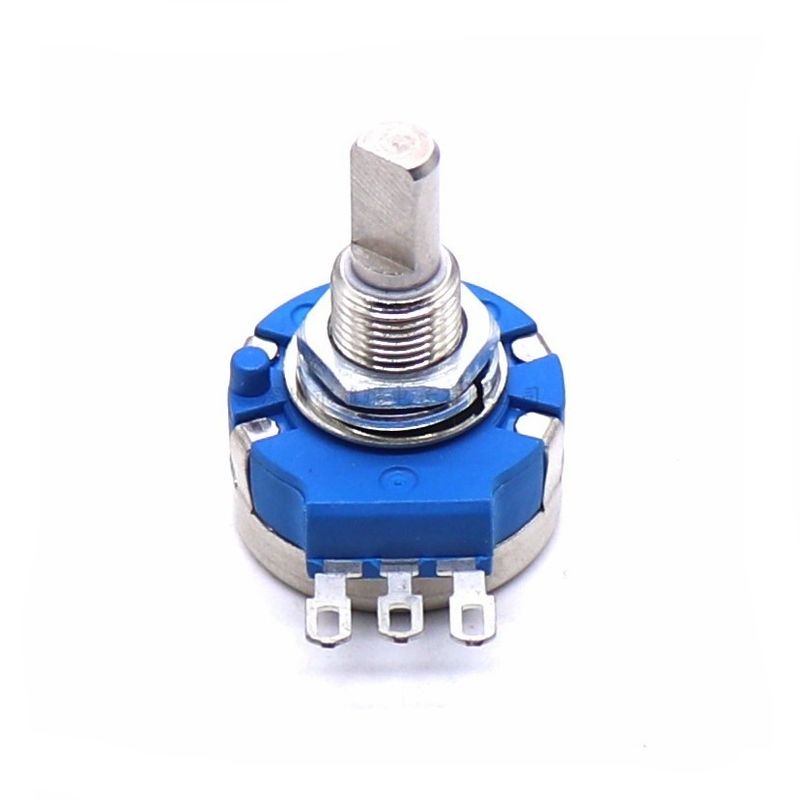

RVQ24 Games Console Carbon Film Potentiometer RVQ24YN03 Long Life
RVQ24 Games Console Carbon Film Potentiometer RVQ24YN03 Long Life
Key Attributes
Brand Name:BONENS
Model Number:RVQ24YN03
Place of Origin:Sichuan, China
Standard Packaging:Carton packaging
Product Summary
RVQ24 Long life games console Carbon film potentiometer RVQ24YN03 RVQ24 Potentiometer Metal Carbon Film Potentiometer Governor RVQ24YN03 20S B502 Long Life Potentiometer RVQ24 RVQ24YN RVQ24YN03 characteristic: RVQ24YN03 series potentiometers, precision potentiometers, long life rotary potentiometers...
Product Details
Highlight:
Games Console Use
,Long Life Design
,Metal Carbon Membrane
Model Number:
RVQ24YN03
Type:
Carbon Film Potentiometer
Resistance:
50Ω~2M
Brand Name:
Bonens
Resistance Tolerance:
± 10% ,± 20%
Power Rating:
0.2 W
Total Rotational Angle:
300±10°
Electrical Angle:
280°±10°
Mechanical Angle:
300°±5°
Life:
100000 Times
Type:
Rotary Potentiometer
Technology:
Metal Carbon Film
Turns:
1 Turn
Resistance:
50Ω-2M
Application:
Games Console, Governor
Product Description
Detailed Specifications & Features
RVQ24 Long life games console Carbon film potentiometer RVQ24YN03
RVQ24 Potentiometer Metal Carbon Film Potentiometer Governor RVQ24YN03 20S B502 Long Life Potentiometer RVQ24 RVQ24YN RVQ24YN03
characteristic:
RVQ24YN03 series potentiometers, precision potentiometers, long life rotary potentiometers, diameter 24mm potentiometers, single turn carbon film potentiometers, industrial panel control potentiometers, TOCOS metal shaft potentiometers
advantage:
The rotating life can reach up to 1000000 times, with high precision and stability. The optional resistance values can meet the needs of various circuits, and there are various shaft lengths and shapes to choose from. It is easy to install, easy to adjust, and widely used
application:
Car audio, industrial control panels, CNC equipment, precision instruments, machine tool equipment, household appliances, communication equipment, etc.
Products datasheet:
Mechanical specifications:
● total rotational angle: 300±10°
● rotational torque: 20~200gf.cm
● click position is available
● rotation stop strength: 8kgf.cm Max
● residual resistance: Max 10 ohm
Electrical specifications:
● total resistance range: 500 ohm <= R <= 1M ohm ± 10% 500 ohm >= R >= 1M ohm ± 30%
● resistance taper: A, B, C, D
● power rating: 0.2 w
● Max. operating voltage: AC 500 V
● rotational noise: less than 47 m
● insulation resistance: 50M ohm or more
● withstanding voltage: 500V AC for 1min
● rotation life: 15,000 Cycles Min
● total rotational angle: 300±10°
● rotational torque: 20~200gf.cm
● click position is available
● rotation stop strength: 8kgf.cm Max
● residual resistance: Max 10 ohm
Electrical specifications:
● total resistance range: 500 ohm <= R <= 1M ohm ± 10% 500 ohm >= R >= 1M ohm ± 30%
● resistance taper: A, B, C, D
● power rating: 0.2 w
● Max. operating voltage: AC 500 V
● rotational noise: less than 47 m
● insulation resistance: 50M ohm or more
● withstanding voltage: 500V AC for 1min
● rotation life: 15,000 Cycles Min
Specifications:
| resistance | 100K(500--1M) |
| resistance tolerance. | 100K(500--1M) |
| power | 0.5W |
| electrical angle | 280°±10° |
| Mechanical angle | 300°±5° |
| Life | 100000 times |
| Outer diameter | 24mm |
| innerdiameter | 20mm |
| Shaft diameter | 6mm |
RV24 Rotary potentiometer parameters size
FAQ:
Q1. Can I order samples of LED lights?
A: Yes, we welcome ordering samples to test and inspect the quality. Mixed samples are acceptable.
Q2. What is the delivery cycle?
A: Sample preparation takes 3-5 days and mass production takes 8-10 working days.
Q3. Do you have a minimum order quantity limit for LED lights?
A: The minimum order quantity is low, and one sample can be provided for inspection.
Q4. How did you ship the goods and how long will it take to arrive?
A: Transport via DHL, UPS, FedEx, or TNT. It will take 3-5 days to arrive. Air and sea transportation are also optional.
Q5. How to process orders for LED lights?
A: First, let us know your request or application.Secondly, we will quote based on your requirements or our suggestions.Thirdly, the customer confirms the sample and deposits it as a formal order.Fourthly, we arrange production.
Q6. Can I print my logo on the LED product?
A: Yes. Please formally notify us before production.
Q7: Do you provide a guarantee for the product?
A: Yes, we offer a 5-year warranty for our products
