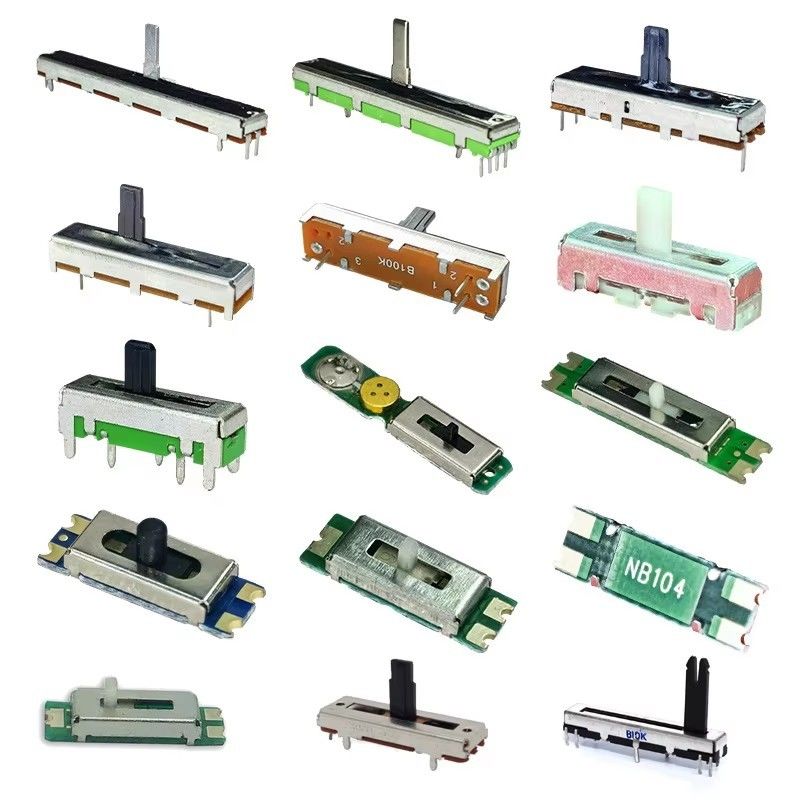

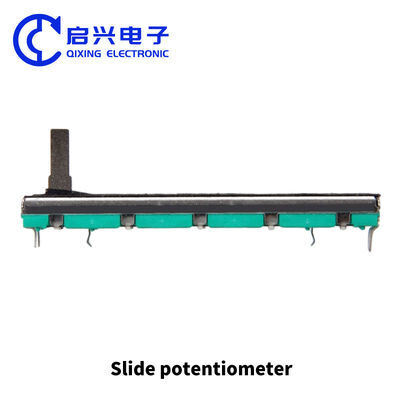

Product Details
Place of Origin: Chengdu, Sichuan
Brand Name: BONENS
Model Number: SC10005G
Payment & Shipping Terms
|
ELECTRICAL CHARACTERISTICS
|
||
|
Total Resistance
|
10K Ω±20%
|
|
|
Resistance Taper
|
A, B,C,D,E,MN,RD, W,
|
|
|
Max. Operation Voltage
|
Linear Taper B :AC 200 V~DC / V
|
|
|
|
Other Tapers :AC 150 V~DC / V
|
|
|
Rated Power
|
Single unit: Linear taper B:0.2W, Other tapers : 0.05W
Dual unit: Linear taper B:0.1W, Other tapers :0.025W |
|
|
Sliding Noise
|
Less than 100 mV
|
|
|
Insulation Resistance
|
More than 100 MΩ at DC 250 V
|
|
|
Withstand Voltage
|
1 minute at AC 300 V
|
|
|
Residual Resistance
|
Term. 1~2 :Less than 10 Ω
|
|
|
|
Term. 2~3 :Less than 10 Ω
|
|
|
Gang Error (Dual Unit)
|
-40 dB ~ 0 dB ± 3dB
|
|
|
MECHANICAL CHARACTERISTICS
|
||
|
Total Sliding Travel
|
60.0 mm ± 0.5 mm
|
|
|
Operating Force
|
10 ~ 100 gf
|
|
|
Sliding Stopper Strength
|
5.0 Kgf.cm Min.
|
|
|
Push-Pull Strength
|
3.0 Kgf.cm Min . at 5 sec 10 sec
|
|
|
Number of Detents (Click)
|
1C (Center Detent ),7C,11C,21C,41C
|
|
|
Click Slip-Out Force
|
/ ~ / gf
|
|
|
Resistance to soldering heat
|
Solder dip:
Preheating condition: Surface temperature of the substrate shall be settled within 100℃ in one min. Solder temperature 260±5℃for 5 sec. |
|
|
|
Manual Soldering: Less than 300℃ and quicker than 3 seconds.
|
|
|
Sliding Life
|
10,000 Other / (Cycles Min.)
|
|
