B10K Mono Single Channel 128mm Length 100mm Travel Slide Potentiometer
B10K Mono Single Channel 128mm Length 100mm Travel Slide Potentiometer
Key Attributes
Brand Name:BONENS
Model Number:Slide 128mm
Place of Origin:Sichuan, China
Standard Packaging:Carton packaging
Product Summary
Overview Product Description Other choice Mono& stereo type compare Lever types u can choose Specification General Operating temperature 10 ℃ ~ +70 ℃ Manual soldering 300 ℃ max 3 sec Electrical Characteristics Total resistance 1 KΩ ~ 1 MΩ Total resistance tolerance ± 20 %( more than 1 MΩ ± 30 % ) ...
Product Details
Highlight:
128mm Length
,100mm Travel
,B10K Mono
Business Type:
Manufacturer
Resistance:
1 KΩ ~ 1 MΩ
Resistance Tolerance:
±20%
Description:
100mm Stoke Slider
Model Number:
Potentiometer 100 Mm
Brand Name:
Bonens
Operating Temperature:
10 ℃ ~ +70 ℃
Manual Soldering:
300 ℃ Max 3 Sec
Sliding Life:
15,000 Cycles
Shaft PushPull Strength:
5 Kgf Max
Type:
Mono Single Channel Fader
Technology:
Carbon Film
Length:
128mm
Travel:
100mm
Resistance:
B10K
Application:
Audio Mixer
Product Description
Detailed Specifications & Features
Product Description
Other choice

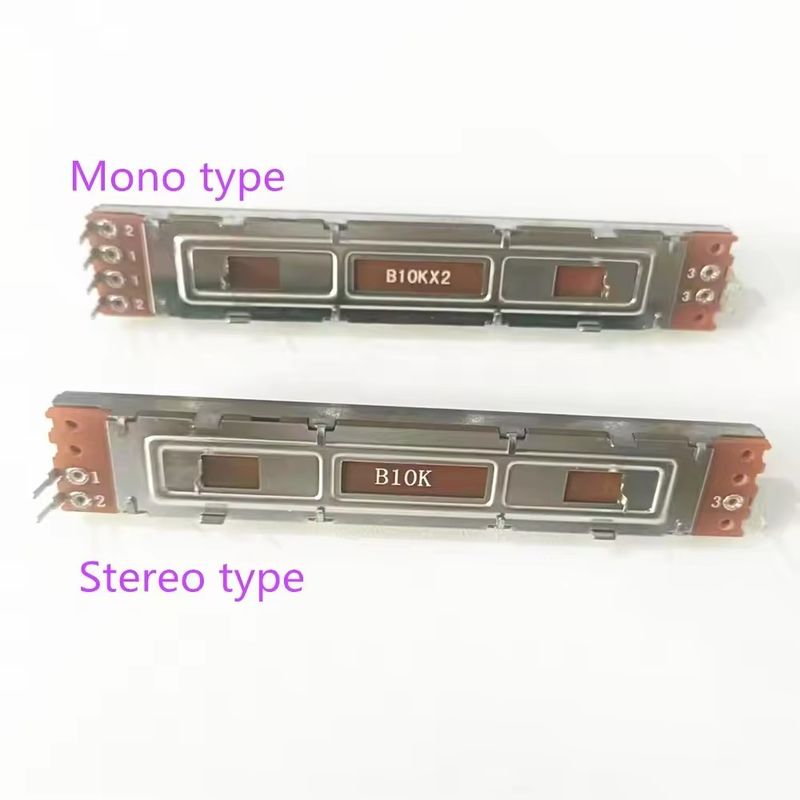

Mono& stereo type compare
Lever types u can choose
Specification
|
General
|
|
|
Operating temperature
|
10 ℃ ~ +70 ℃
|
|
Manual soldering
|
300 ℃ max 3 sec
|
|
Electrical Characteristics
|
|
|
Total resistance
|
1 KΩ ~ 1 MΩ
|
|
Total resistance tolerance
|
± 20 %( more than 1 MΩ ± 30 % )
|
|
Resistance taper
|
A □ B □ C □ D □
|
|
Sliding noise
|
Less than 100mV
|
|
Residual resistance
|
Less than 20 Ω
|
|
Rated power (W)
|
Linear (B) taper:0.1 W
Other tapers:0.05 W |
|
Rated voltage (V)
|
E=
E:Rated voltage P:Power rating R:Nominal total resistance When the rated voltage exceeds the maximum operating voltage,the maximum operating voltage shall be the rated voltage. |
|
Max operating voltage
|
Linear (B) taper:AC 200 V
Other tapers:AC 150 V |
|
Insulation resistance
|
More than 100 MΩ at DC 500 V
|
|
Withstand voltage
|
1 minute at AC 500 V
|
|
Mechanical Characteristics
|
|
|
Travel length
|
mm ± 0.5 mm
|
|
Operating force
|
20 ~ 260 gf.cm
|
|
Stopper strength
|
10 Kgf.cm max
|
|
Shaft pushpull strength
|
5 Kgf max
|
|
Sliding life
|
15,000 cycles
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
