Product Details
Place of Origin: Sichuan, China
Brand Name: BONENS
Model Number: DBI
Payment & Shipping Terms

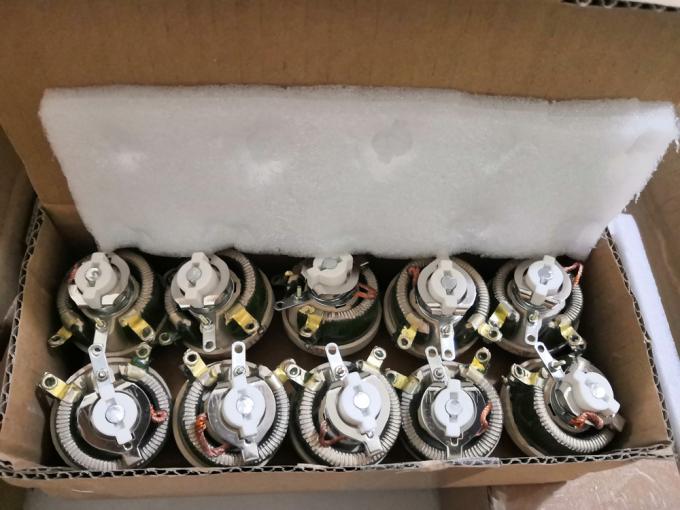

Packaging Details: Carton packaging
Terminal Resistance: |
≤0.2%or1Ω |
Insulation Resistance: |
≥100mΩ（500Vdc） |
Dimensions: |
6mm X 9mm |
Temperature Range: |
-55℃~350℃ |
Rated Power: |
25W~500W |
Resistance Error Error: |
±10% |
Packaging Type: |
Paper Package |
Operating Temperature: |
-55°~+400° |
Mounting Type: |
Through Hole |
Termination Style: |
Axial |
Temperature Coefficient: |
±100ppm/°C |
Package/Case: |
6mm Round |
Head Mechanical Itinerary: |
300°±1 Rotate Smoothly |
Power Rating: |
0.25W |
Dampness: |
40±2°,RH:95%-98% 48h△R≤±3%R,R12100MΩ |
Terminal Resistance: |
≤0.2%or1Ω |
Insulation Resistance: |
≥100mΩ（500Vdc） |
Dimensions: |
6mm X 9mm |
Temperature Range: |
-55℃~350℃ |
Rated Power: |
25W~500W |
Resistance Error Error: |
±10% |
Packaging Type: |
Paper Package |
Operating Temperature: |
-55°~+400° |
Mounting Type: |
Through Hole |
Termination Style: |
Axial |
Temperature Coefficient: |
±100ppm/°C |
Package/Case: |
6mm Round |
Head Mechanical Itinerary: |
300°±1 Rotate Smoothly |
Power Rating: |
0.25W |
Dampness: |
40±2°,RH:95%-98% 48h△R≤±3%R,R12100MΩ |
|

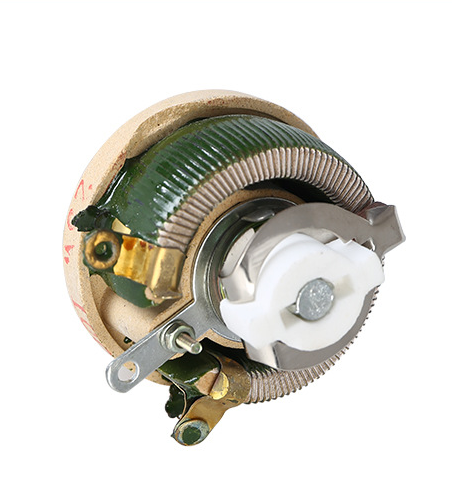

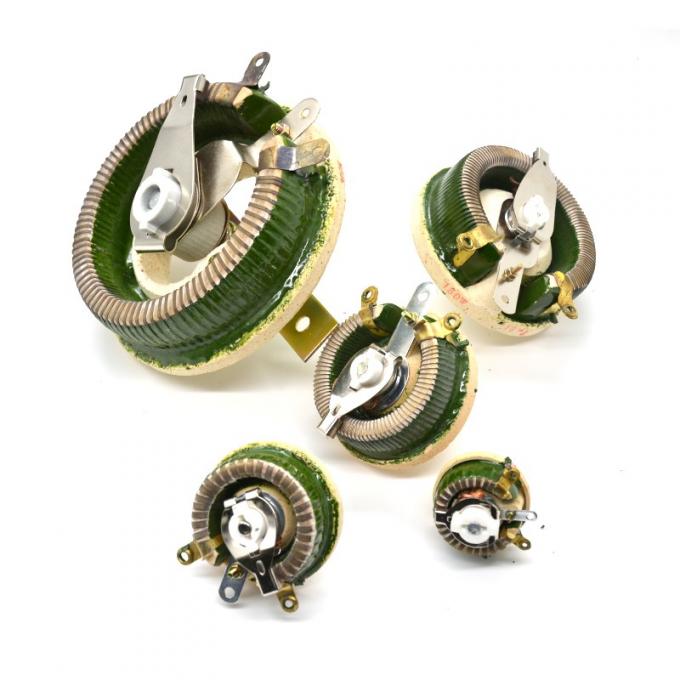

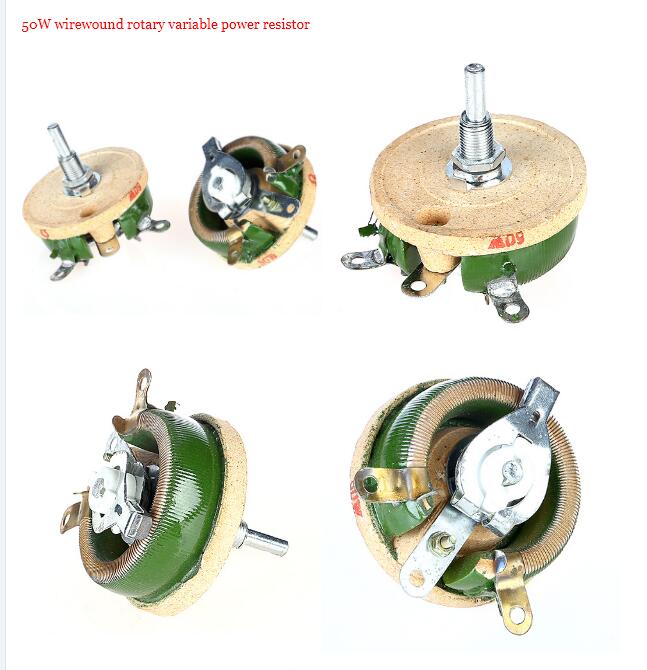

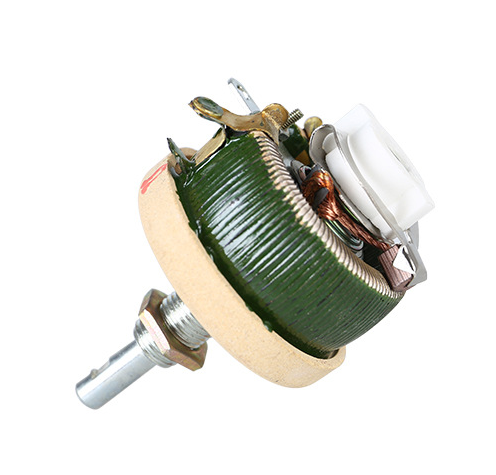

Variable rheostat 50w
|
|
Data list:
|
|
Electrical Characteristics:
Range of nominal resistance.........1Ω~10KΩ Resistance tolerance.........±10% Terminal resistance.........≤0.2% or 1Ω Insulation resistance.........≥100mΩ(500Vdc) Max heating temperature.........350° Environment Characteristics: Rated power.......................50W-500W @ 85°,or @ 400 Temperature range.................-55°~400° Vibration.........................10~200HZ, 40m/S2, 3h ΔR≤±3%R Thermal cycles....................-55°,30min,85°,30min Cycle 3 times ,ΔR≤±3%R, R1≥500MΩ Moisture..................40±2°,RH:95%-98% 48h ΔR≤±3%R, R1≥100MΩ Collision............................60~100 times/min, 150m/S2, 4000 times |
|

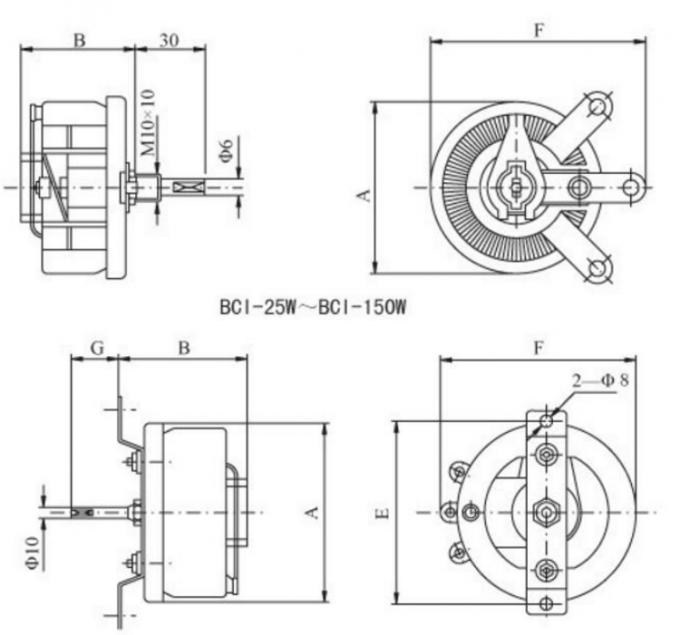

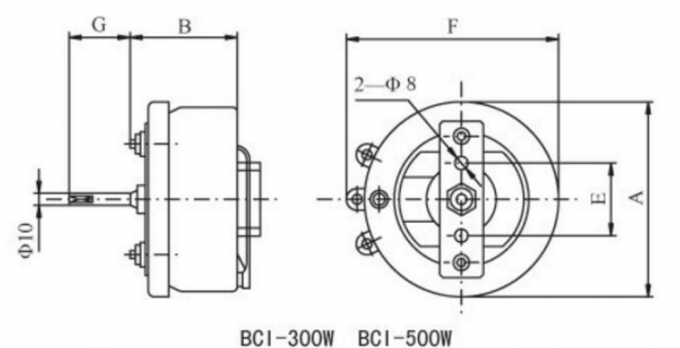

Installation size:
|
|
Rated power(W)
|
A
|
B
|
F
|
|
BC1-25W
|
44
|
43
|
50
|
|
BC1-50W
|
66
|
43
|
75
|
|
BC1-100W
|
84
|
43
|
95
|
|
BC1-150W
|
106
|
48
|
120
|
|
BC1-300W
|
170
|
74
|
180
|
|
BC1-500W
|
210
|
60
|
230
|
|
BC1-50W/2
|
80
|
100
|
75
|
|
BC1-100W/2
|
97
|
112
|
95
|
|
BC1-150W/2
|
135
|
120
|
120
|
|
BC1-300W/2
|
175
|
165
|
180
|
|
BC1-500W/2
|
220
|
165
|
230
|
|
BC1-150W/3
|
170
|
220
|
120
|
|
BC1-300W/3
|
175
|
275
|
180
|
|
BC1-500W/3
|
220
|
275
|
230
|
