1/2W Carbon Film Resistor with 5% Tolerance and Surface Mount for Precision Applications
  • 1/2W Carbon Film Resistor with 5% Tolerance and Surface Mount for Precision Applications
  • 1/2W Carbon Film Resistor with 5% Tolerance and Surface Mount for Precision Applications
  • 1/2W Carbon Film Resistor with 5% Tolerance and Surface Mount for Precision Applications
  • 1/2W Carbon Film Resistor with 5% Tolerance and Surface Mount for Precision Applications
  • 1/2W Carbon Film Resistor with 5% Tolerance and Surface Mount for Precision Applications
  • 1/2W Carbon Film Resistor with 5% Tolerance and Surface Mount for Precision Applications
1/2W Carbon Film Resistor with 5% Tolerance and Surface Mount for Precision Applications

1/2W Carbon Film Resistor with 5% Tolerance and Surface Mount for Precision Applications

Place of Origin Sichuan, China
Brand Name BONENS
Model Number CFR
Product Details
Description:

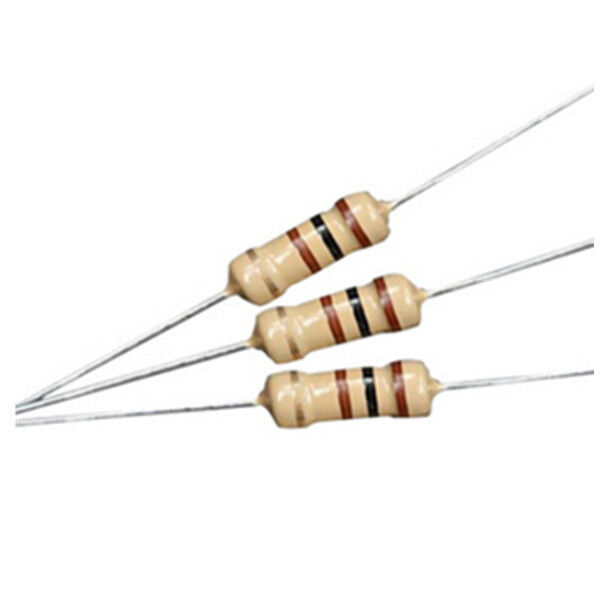

1/2w Carbon Film Resistor
Resistance:
11R-4.7M, 11R-4.7M
Resistance Tolerance:
5%, 5%
Producing Experience:
13 Years
Technology:
Carbon Film
Composition:
Carbon Film
Package Type:
Surface Mount
Operating Temperature:
350PPH
Power (Watts):
1/2W
D/C:
2022
Rated Power:
1/2W
Highlight:

1/2W carbon film resistor

,

carbon film resistor with warranty

,

metal film resistor 1/2W

Payment & Shipping Terms
Minimum Order Quantity
1000
Product Description
Product Description
1/2W Carbon Film Resistor with 5% Tolerance and Surface Mount for Precision Applications 0

BONENS

Widely used in small experiments, product development, production requirements, instrumentation, etc.
1/2W Carbon Film Resistor with 5% Tolerance and Surface Mount for Precision Applications 2
1/2W Carbon Film Resistor with 5% Tolerance and Surface Mount for Precision Applications 4
1/2W Carbon Film Resistor with 5% Tolerance and Surface Mount for Precision Applications 6

details：

1.Insulation resistance: 1000M ohm or more
2.Voltage endurance: The resistance variation shall be within±(2% + 0.05ohm) and there shall be no mechanical breakage
3. Intermittent overload:Resistance variation shall be Within ±(2.00% + 0.05ohm
4.Terminal strength:Resistance variation shall be within±(0.5% + 0.05ohm) also there Shall be on mechanical breakage
5.Heat resistively Against soldering:Resistance variation shall be within ± (1.0%+0.05ohm) also there Shall be on mechanical breakage
6. Solder ability:More than 95% of the surface of the lead shall be covered by new solder after the leads are dipped in the Solder
7.Humidity load test:Resistance variation be Within ± (3.0% + 0.05ohm) Also there shall be mo mechanical breakage
8.Load life test :The variation of the resistance Shall be within ± (3%+0.05ohm) Also there shall be no mechanical Breakage
1/2W Carbon Film Resistor with 5% Tolerance and Surface Mount for Precision Applications 8
1/2W Carbon Film Resistor with 5% Tolerance and Surface Mount for Precision Applications 10
Rating:
CF(CARBON FILM FIXED RESISTORS)
STYLE
MAX
WORKING
MAX
OVERLOAD
RESISTANCE
VALUE RANGE
CF1/6W / CF1/8W
200V
400V
0.1Ω~22MΩ
CF1/4W / CF1/4WS
300V
600V
0.1Ω~22MΩ
CF1/2W / CF1/2WS
350V
700V
0.1Ω~22MΩ
CF1W / CF1WS
500V
1000V
0.1Ω~22MΩ
CF2W / CF2WS
500V
1000V
0.1Ω~22MΩ
CF3W / CF3WS
600V
1000V
0.1Ω~22MΩ
CF5W / CF5WS
600V
1000V
0.1Ω~22MΩ
Power rating:
1/2W Carbon Film Resistor with 5% Tolerance and Surface Mount for Precision Applications 12
Marking:
1/2W Carbon Film Resistor with 5% Tolerance and Surface Mount for Precision Applications 14
Color refer：
Color
1 st Band
2 ndBand
3 rd Band
4 th Band
Black
0
0
100

Brown
1
1
101

Red
2
2
102
±2.0%
Orange
3
3
103

Yellow
4
4
104

Green
5
5
105

Blue
6
6
106

Violet
7
7
107

Grey
8
8
108

White
9
9
109

Gold


10-1
±5.0%
Silver


10-2
±10.0%
Construction And Dimession
Construction:
1/2W Carbon Film Resistor with 5% Tolerance and Surface Mount for Precision Applications 16
Dimession:
1/2W Carbon Film Resistor with 5% Tolerance and Surface Mount for Precision Applications 18
TABLE:
WATTS
L
D
H
d ± 0.02mm
PULLING(Kg)
1/6W 1/8W 1/16W

3.3±0.3

1.8±0.3

28±2.0

0.45

2.5Kg - 30S
1/4WS
1/4W

6.0±0.5

2.3±0.3

27.0±2.0

0.48

2.5Kg - 30S
1/2WS
1/2W

9.0±0.5

3.2±0.3

26.0±2.0

0.58

2.5Kg - 30S
1WS
1W

11.0±1.0

4.5±0.5

35.0±2.0

0.68

3Kg - 30S
2WS
2W

15.0±1.0

5.0±0.5

33.0±2.0

0.78

5Kg - 30S
3WS
3W

17.0±1.0

6.0±0.5

32.0±2.0

0.78

5Kg - 30S
5WS
5W
24.0±1.0
8.0±1.0
28.0±2.0
0.78
5Kg - 30S
